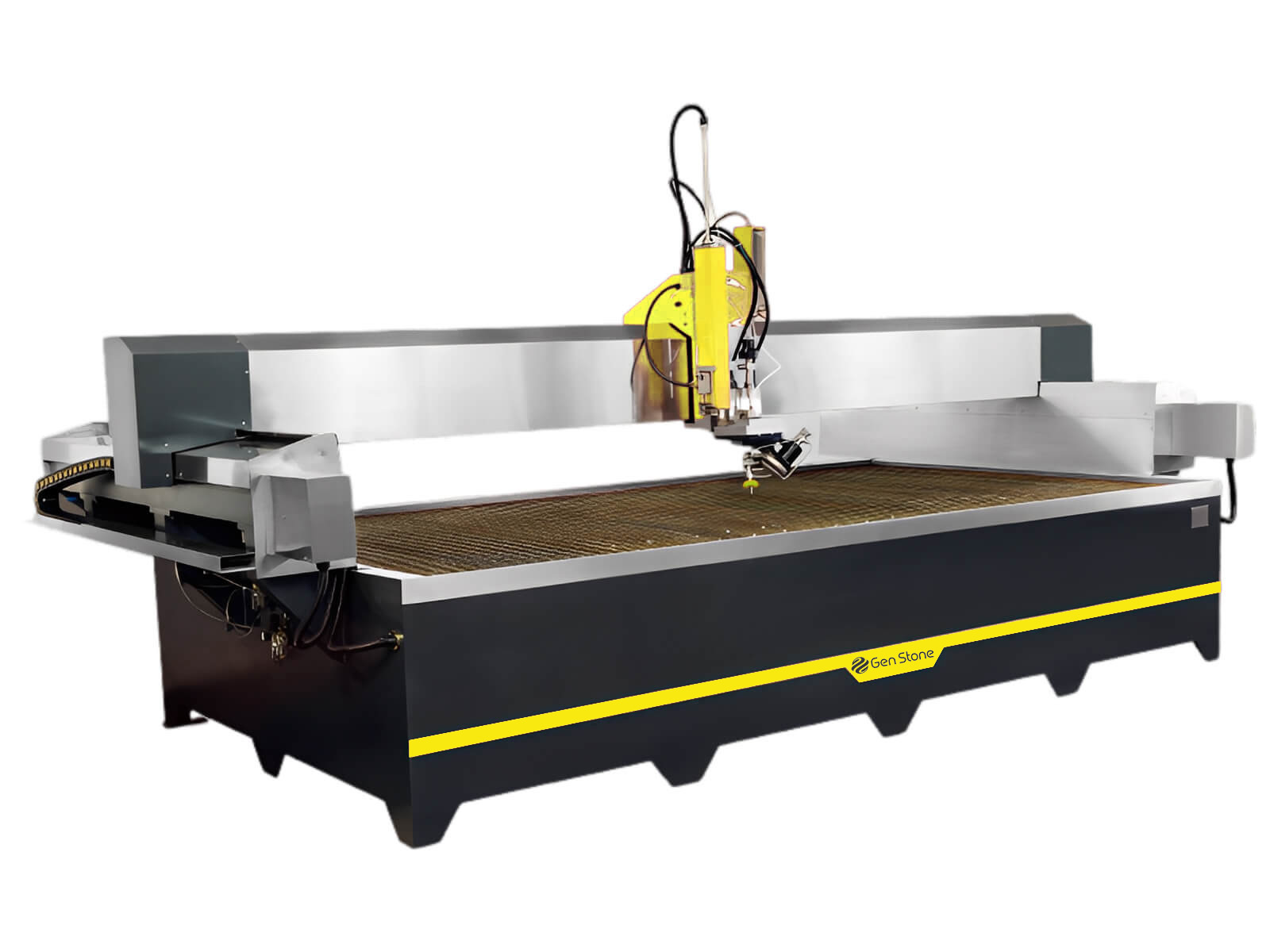

AC5‑Axis CNC Waterjet Machine (W4020)
The AC5‑Axis CNC Waterjet Machine W4020) is a high‑precision cold‑cutting solution for versatile material processing.

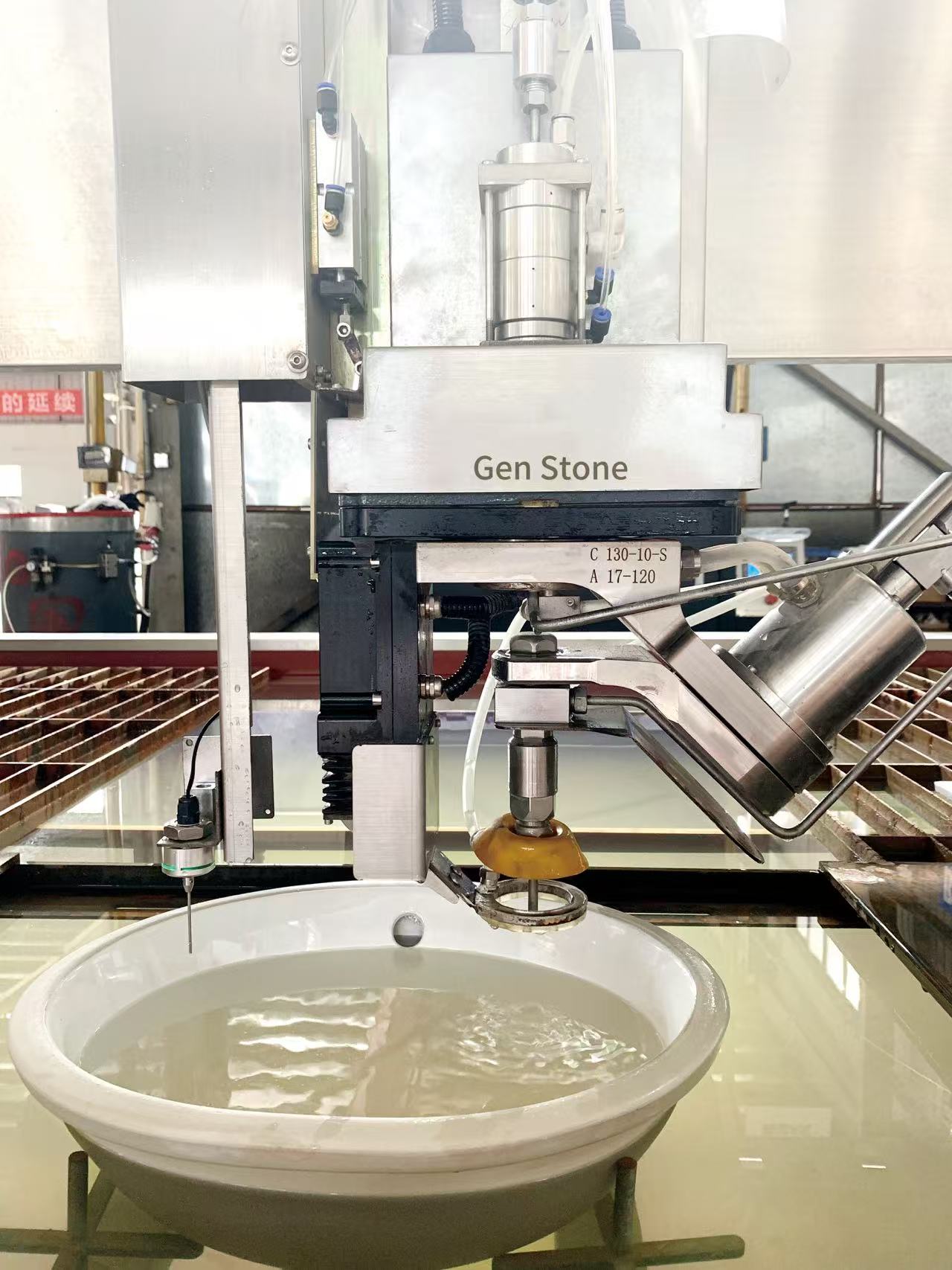

It features a high‑performance 5‑axis dynamic cutting head for 45° chamfering, seamless splicing and cutting of irregular shapes. Using ultra‑high‑pressure cold‑cutting technology, it avoids thermal deformation and burrs, suitable for stone, glass, metal and composites.

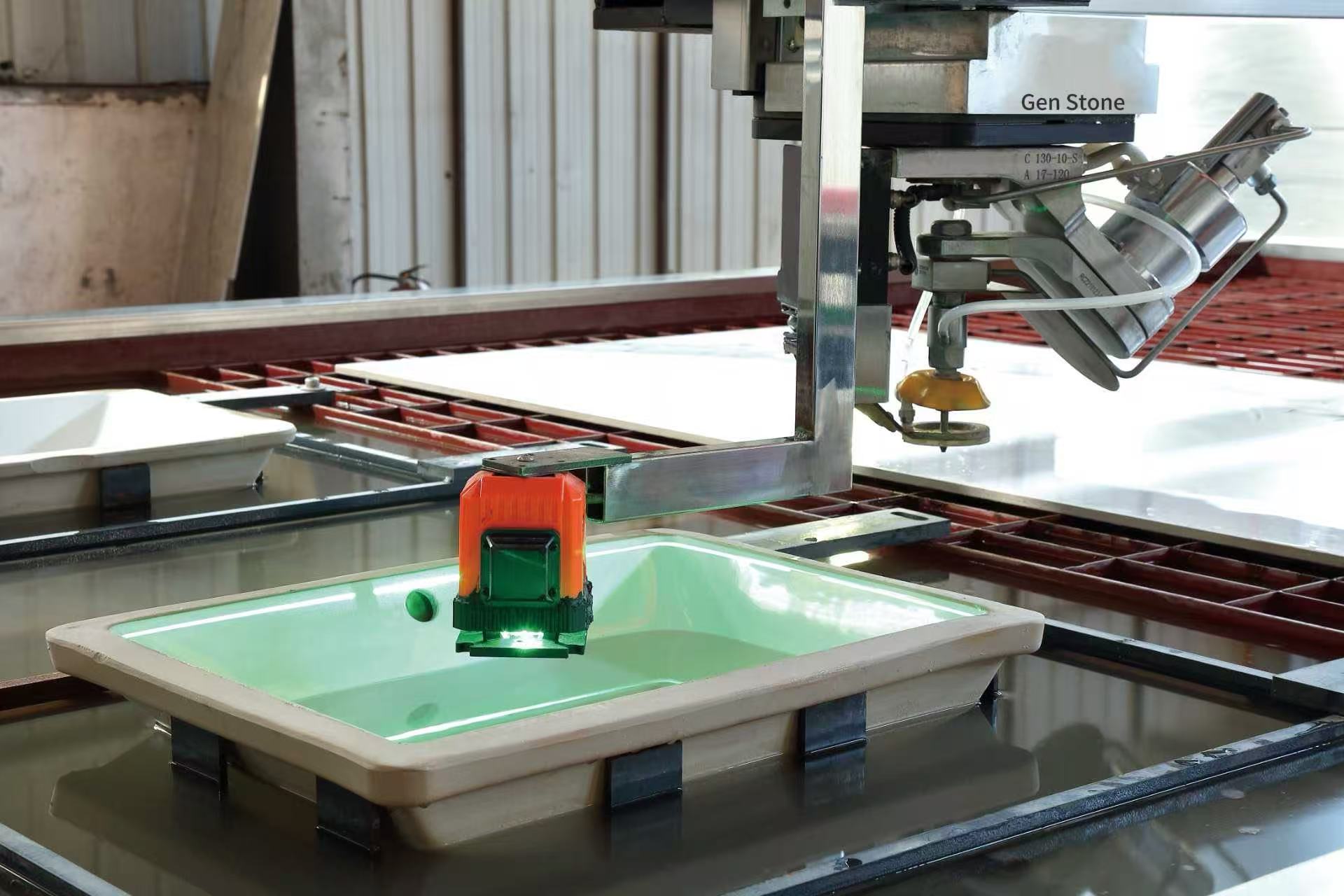

Equipped with a high‑precision CNC system and real‑time height measurement, it ensures stable, accurate cutting. Its heavy‑duty chassis supports long‑term continuous operation, ideal for countertop deep processing. It fits high‑cube containers for export shipping, with customizable OEM/ODM services available.
Quick Information
Technical Specifications
| Model | W4020 |
|---|---|
| Cutting Table Size (L × W) | 4100mm*2100mm |
| Cutting Table Weight | 4650 kgs |
| X/Y-axis Travel | 3600mm*1900mm |
| Z-axis Travel | 100mm |

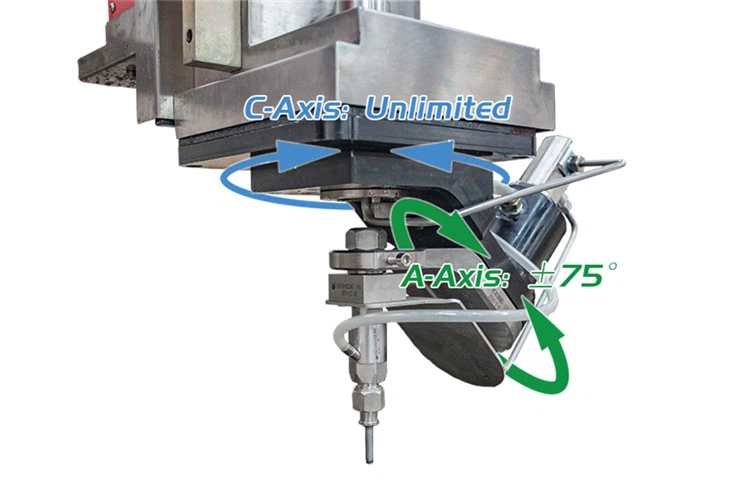

| A-axis Rotation | ±75° |
| C-axis Rotation | Unlimited |
| Cutting Accuracy | ±0.1mm (per 200mm) |
| Repeatability Accuracy | ±0.05mm |
| Traverse Speed | 6500/15000 mm/min |

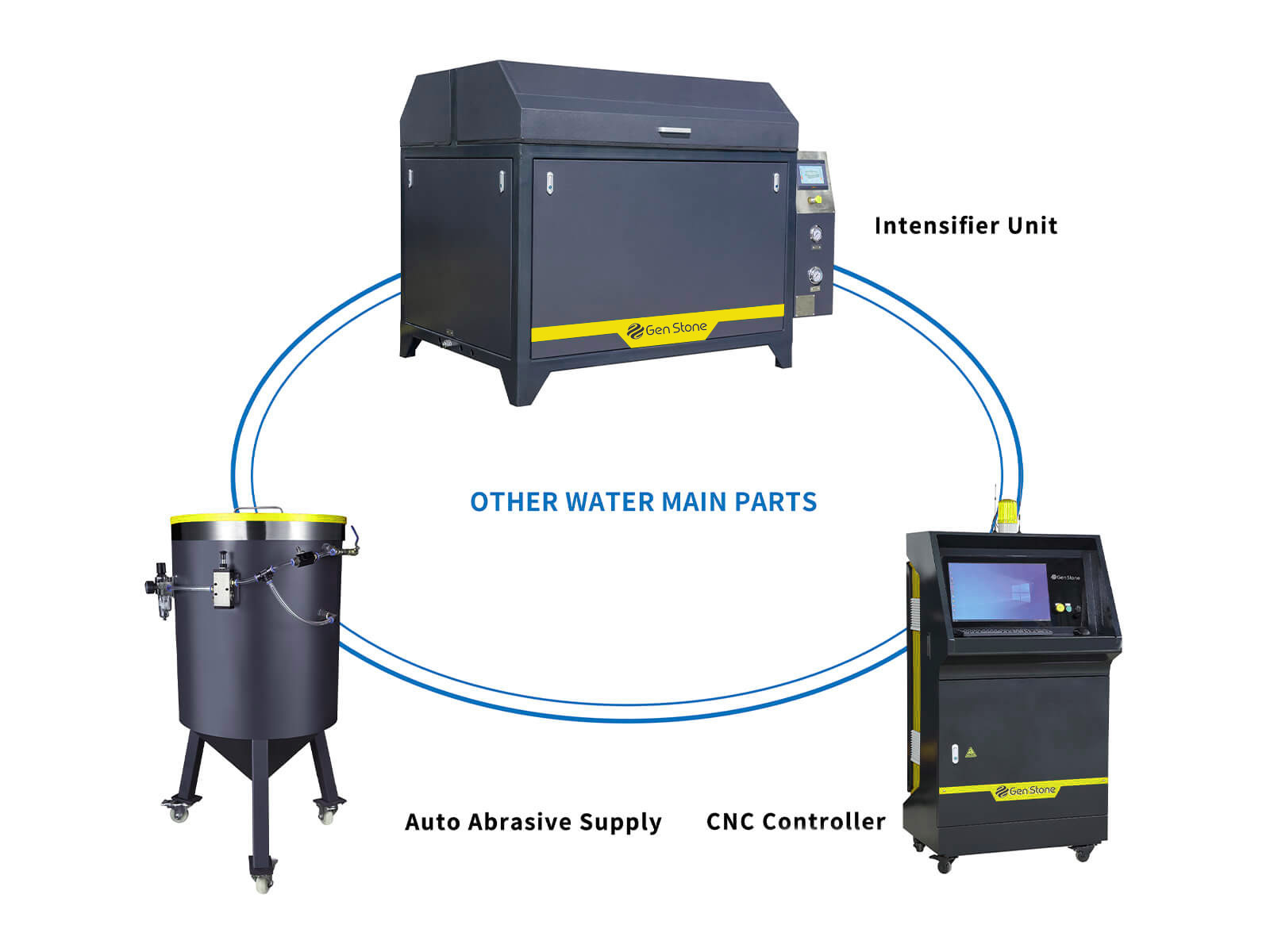

| Intensifier Unit Size (L×W×H) | 1700mm * 1100mm * 1870mm |
| Intensifier Unit Weight | 1108 kgs |
| CNC Controller Size (L×W×H) | 760mm * 730mm * 1680mm |
| CNC Controller Weight | 104 kgs |
| Abrasive Feeding System Size (L×W×H) | 800mm * 800mm * 1400mm |
| Abrasive Feeding System Weight | 100 kgs |
| Power Supply | 220V/380V/440V/415V, AC 50/60Hz |
| High Pressure Pump Model | Fashion |
| Maximum Pressure | 450 MPa |
| Normal Working Pressure | 320-380 MPa |
| Orifice Size | 0.26 / 0.30 / 0.33 / 0.35 mm |
| Oil Pump Displacement | 71/65 cc |
| Oil Cylinder Diameter | 101.6 mm |
| Machine Appearance Design | Classic |
| Cutting Head Waterproof | IP68 |
Applications

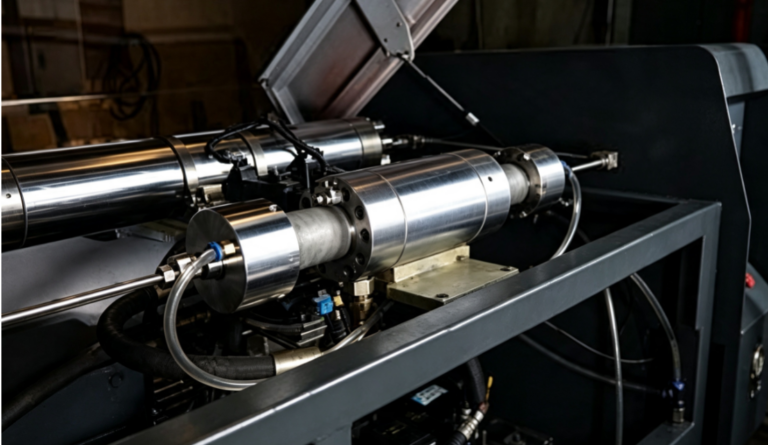

Imported HP cylinder Material
Maintenance-free Water Accumulator

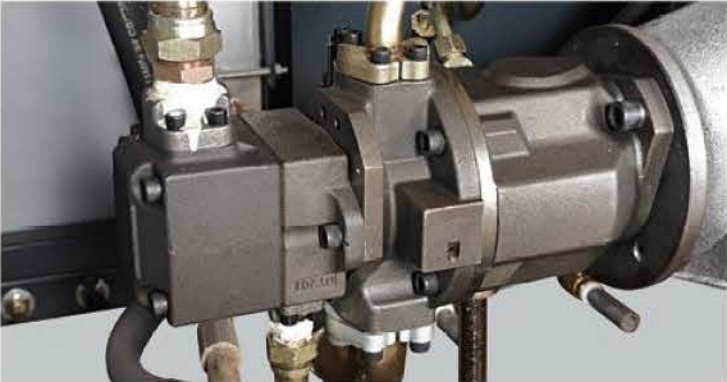

Dual Oil‑circuit, Dual Oil Pump
independent pump cooling oil‑circuit

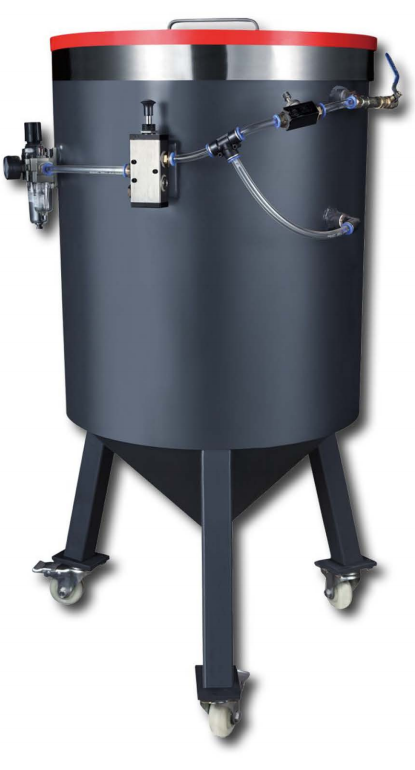

Abrasive Feeding System
1.auto reminding of abrasive level
2.Stainless Steel Funnel avoids any painting polution
3.Abrasive Filter with Drying Function

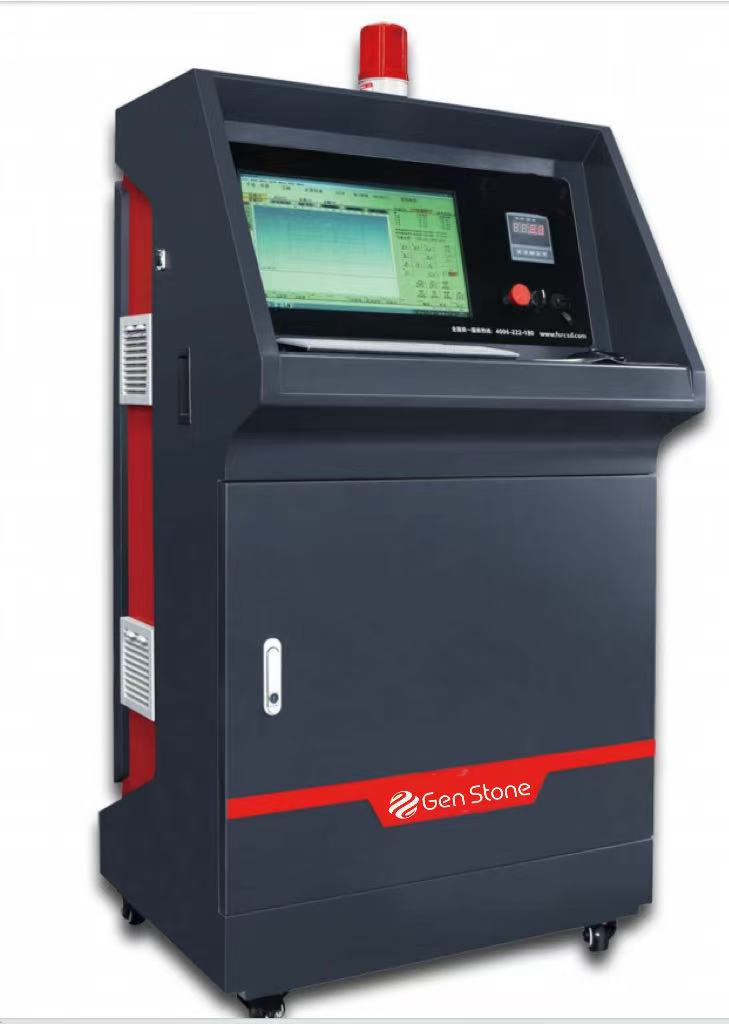

CNC Main Controller
1.19‑inch industrial screen USB access in front panel
2.Heat Exhaust Window
