Bridge & Water Jet（GSQ400/500)

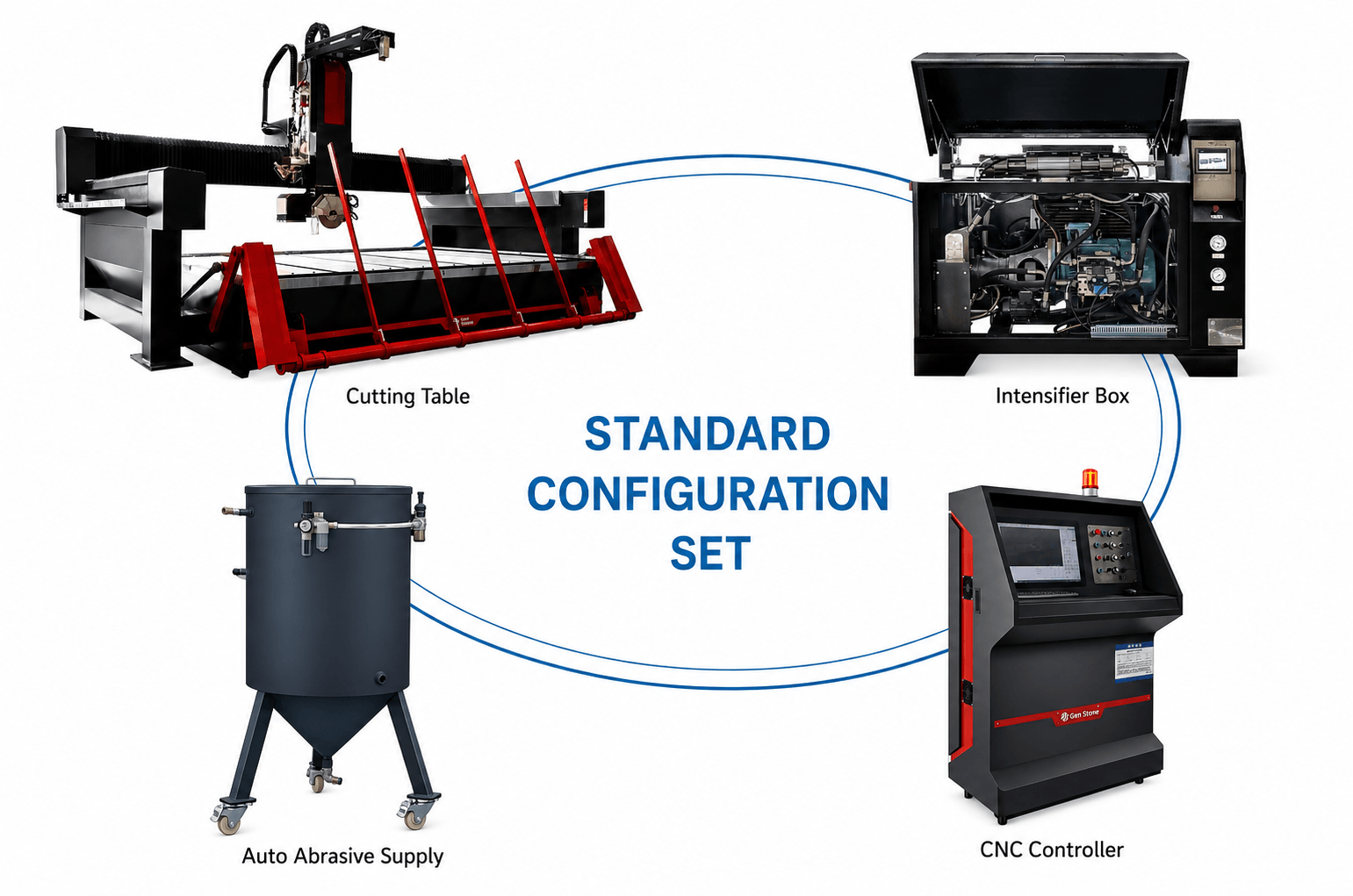

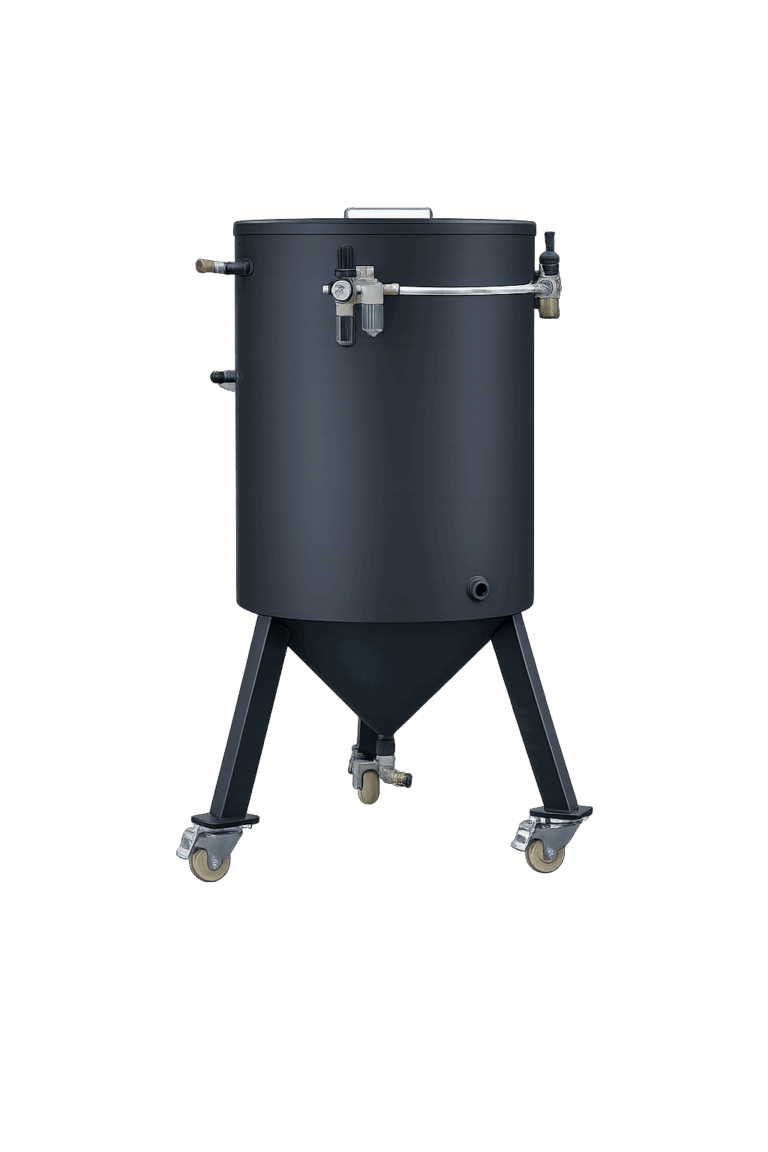

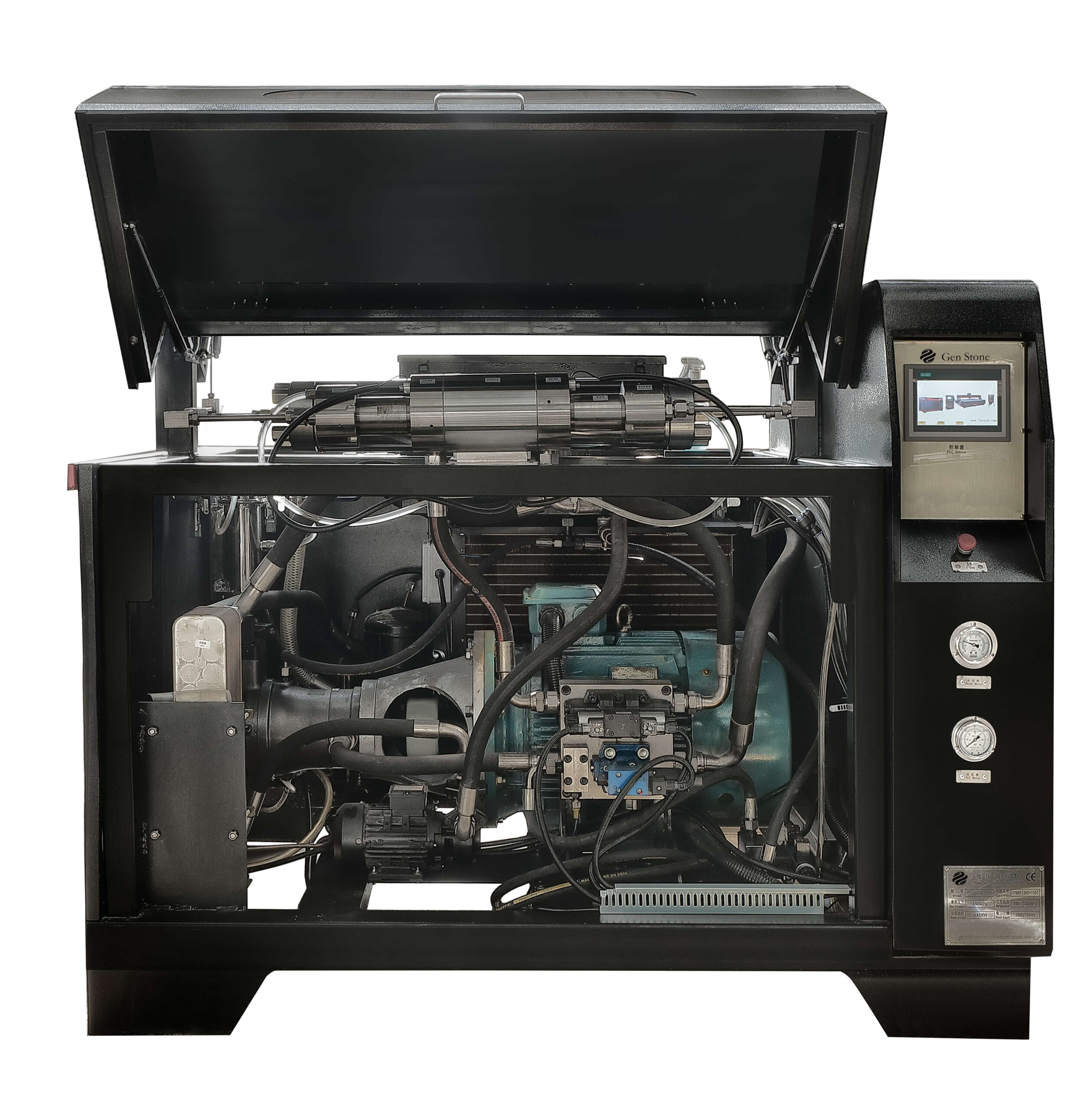

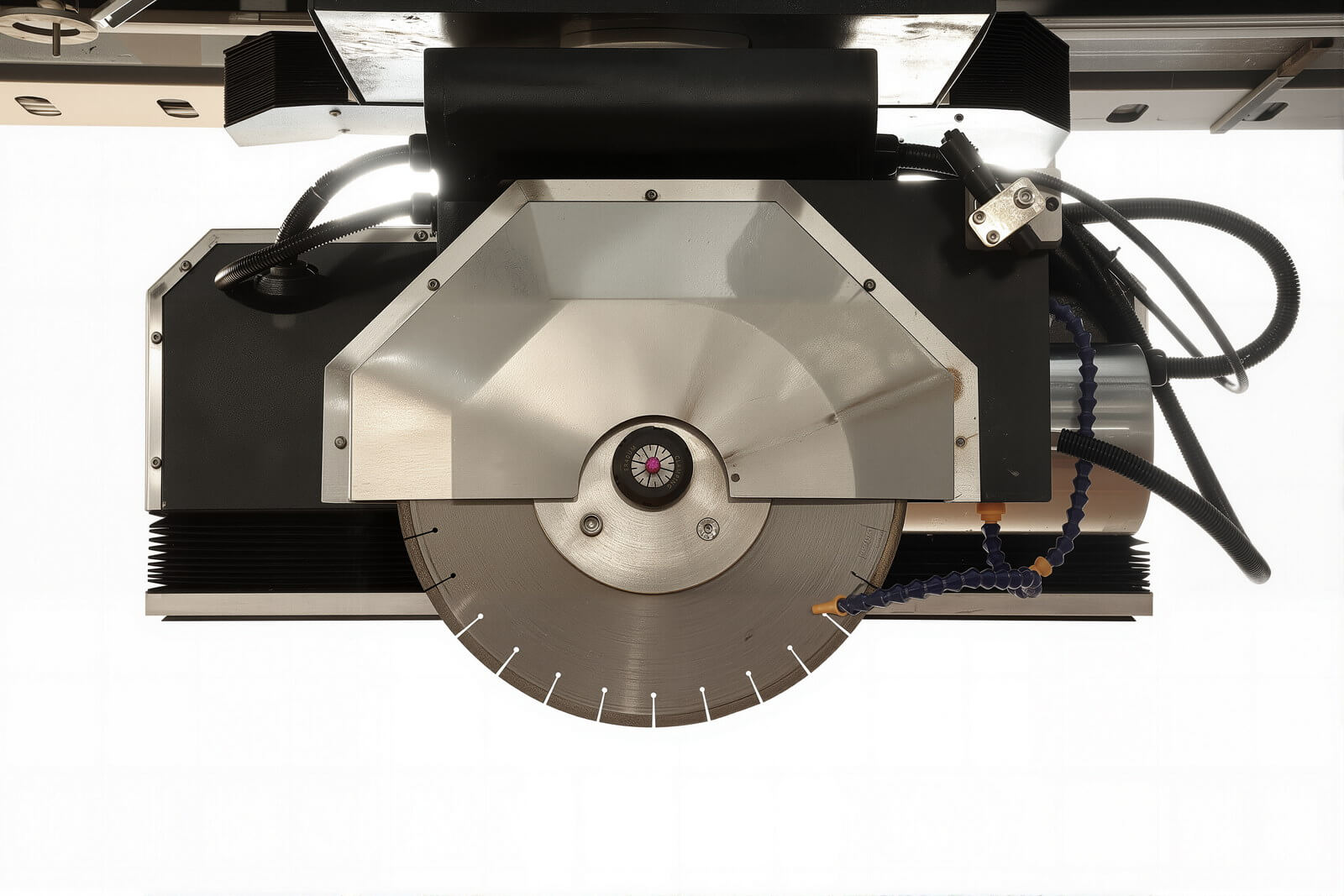

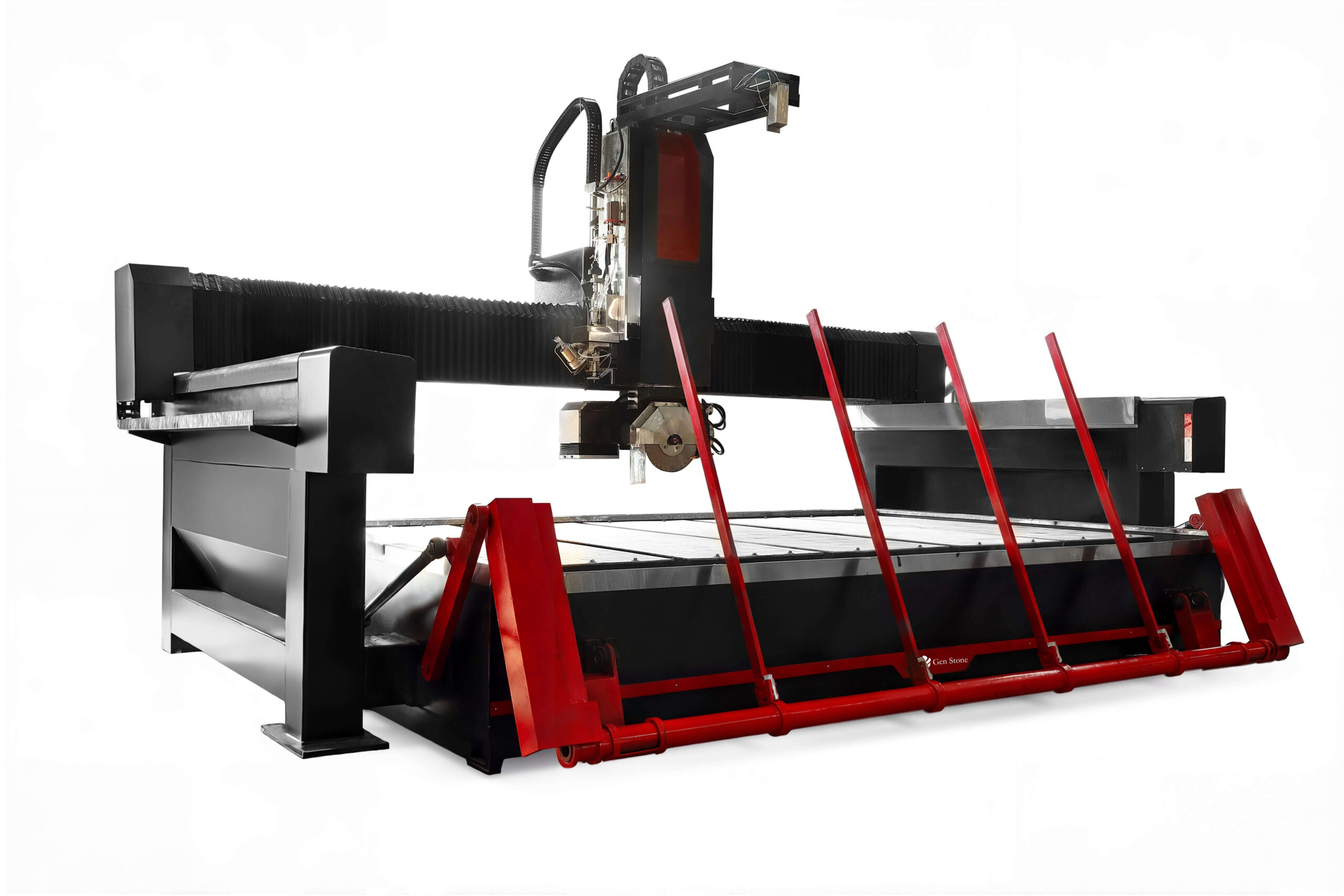

Bridge Cutting + AC 5-Axis Waterjet + Milling Head — All-in-One Stone Processing SolutionEquipped with high-performance bridge saw, IP68 waterproof AC 5-axis waterjet cutting head and 4.5KW milling spindle, enabling cutting, drilling, milling, engraving and polishing in one machine. Perfect for stone, porcelain slab deep processing with high efficiency and precision.
Quick Information
Product Description
Key Features & Advantages
All-in-One Processing
Integrates cutting, drilling, milling, engraving and grinding. Completes slab cutting, shaping and carving in one workflow, reducing material handling time.

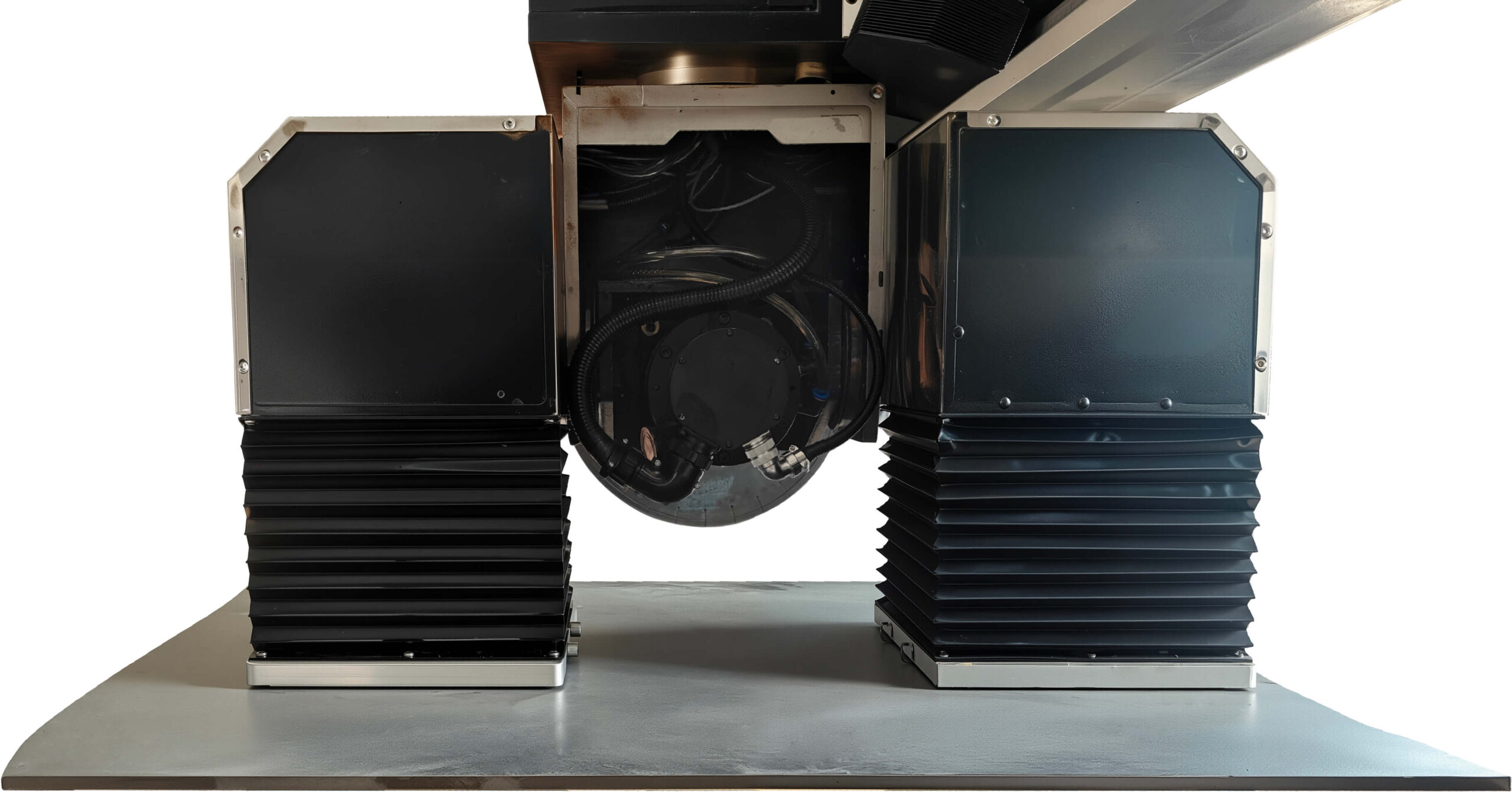

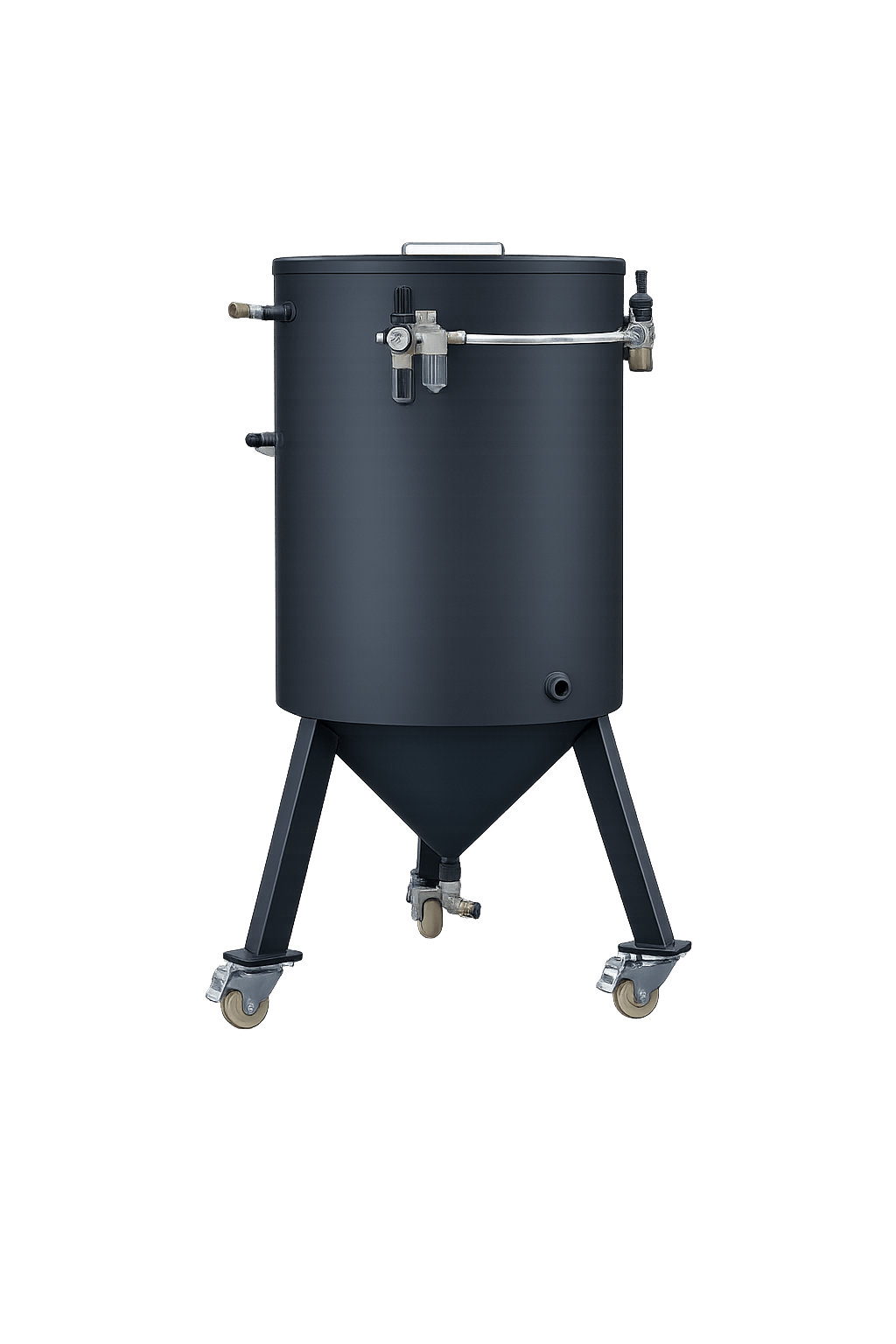

IP68 AC 5-Axis Waterjet Head

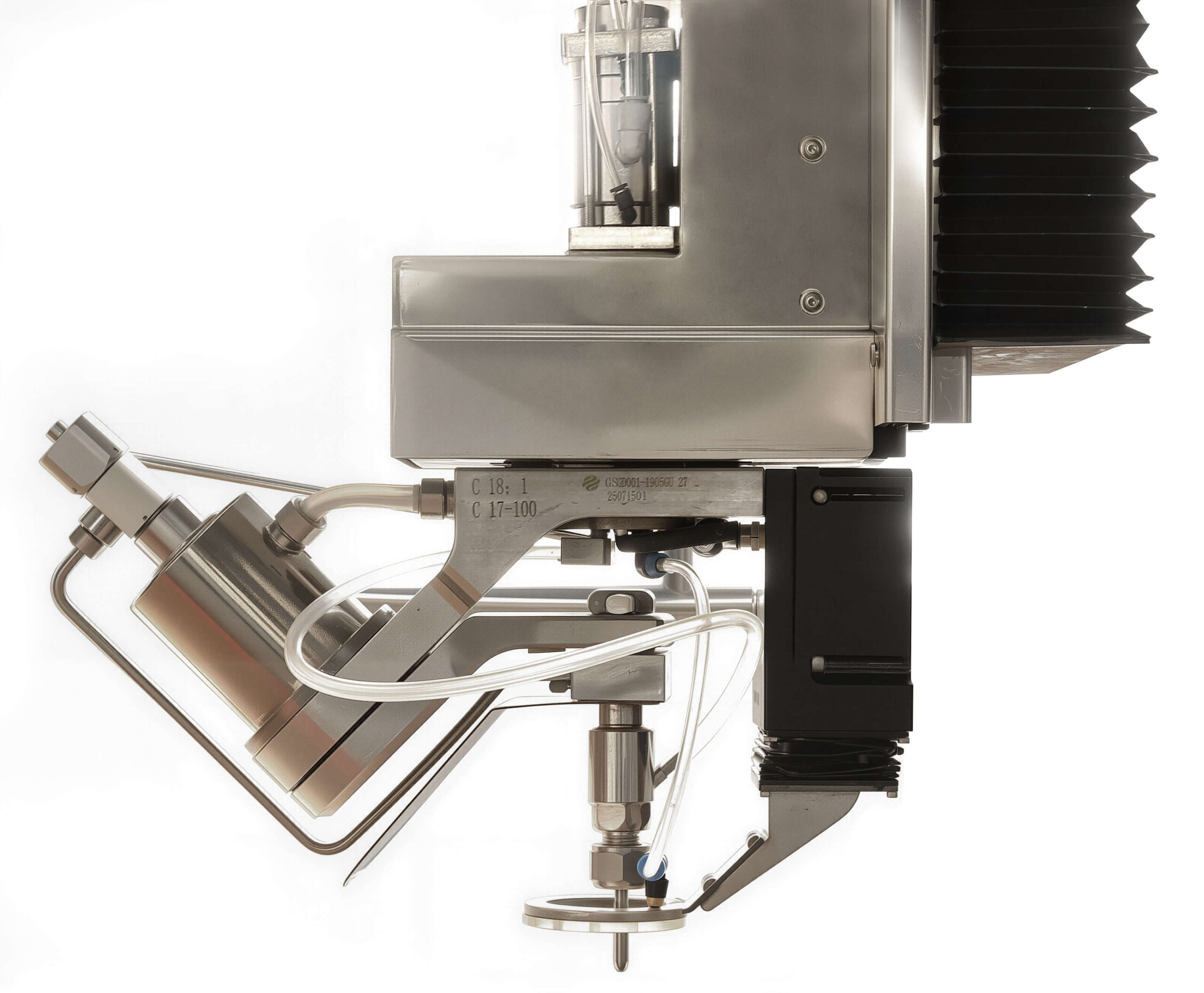

Self-developed IP68 waterproof and dustproof cutting head with real-time height measurement. Excels at complex inner holes, stone mosaics and high-difficulty profiles.

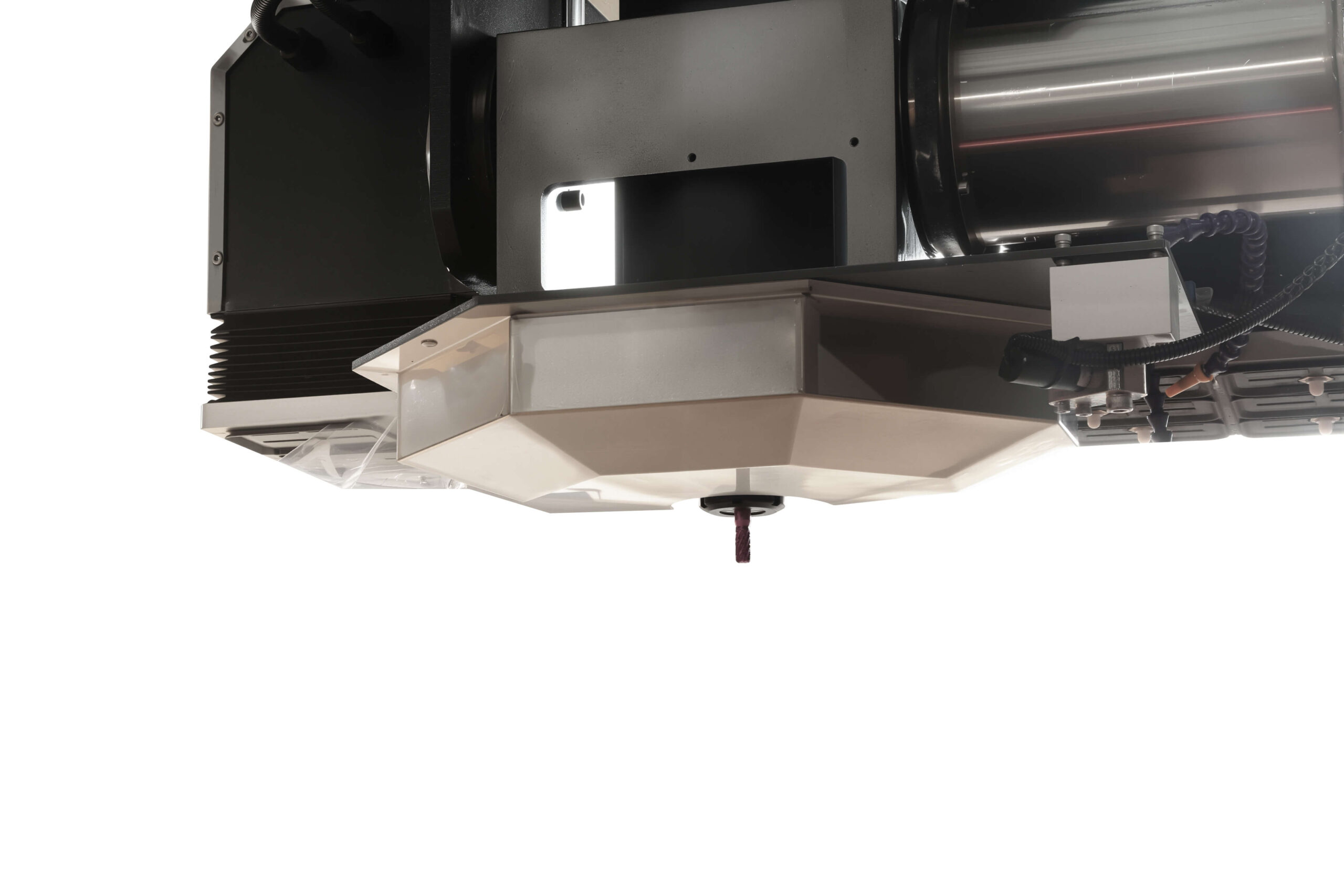

4.5KW Milling Spindle
24000 rpm high-speed milling spindle for precise profiling, edge shaping and fine machining. Supports both rough and finishing operations.
Vacuum Suction Cup Platform
4400×2200mm suction cup fixed platform enables automatic slab transfer without manual handling, greatly improving efficiency and reducing labor cost.
Infrared Alignment
Linear infrared emitter head displays cutting path visually, ensuring accurate positioning and reducing setup time for each workpiece.
Heavy-Duty Structure
Reinforced machine body with cylinder balancing system. Y-beam oil-bubble lubrication + lubricating oil pump system ensures long service life.
Technical Specifications
| Model | GSQ400/500 |
|---|---|
| Cutting Table Size (L × W) | 4100mm × 2450mm |
| Suction Cup Platform Size | 4400mm × 2200mm |
| X/Y-axis Travel | 3000mm × 2000mm |
| Z-axis Travel | 350mm |
| Bridge Saw A-axis Rotation | 90° |
| Bridge Saw C-axis Rotation | ±185° |
| Waterjet A-axis Rotation | ±65° |
| Waterjet C-axis Rotation | Unlimited |
| Available Saw Blade Diameter | 405 – 450 mm |
| Maximum Working Thickness | 80 mm |
| Bridge Saw Spindle Speed | 3000 rpm |
| Milling Spindle Power | 4.5 KW |
| Milling Spindle Speed | 24000 rpm |
| Spindle Cooling Method | Water cooling / Oil cooling |
| Hydraulic Flip Table Range | 0 – 85° |
| Z-axis Balance System | Cylinder balancing system |
| Lubrication Method | Y-beam oil bubble + lubricating oil pump |

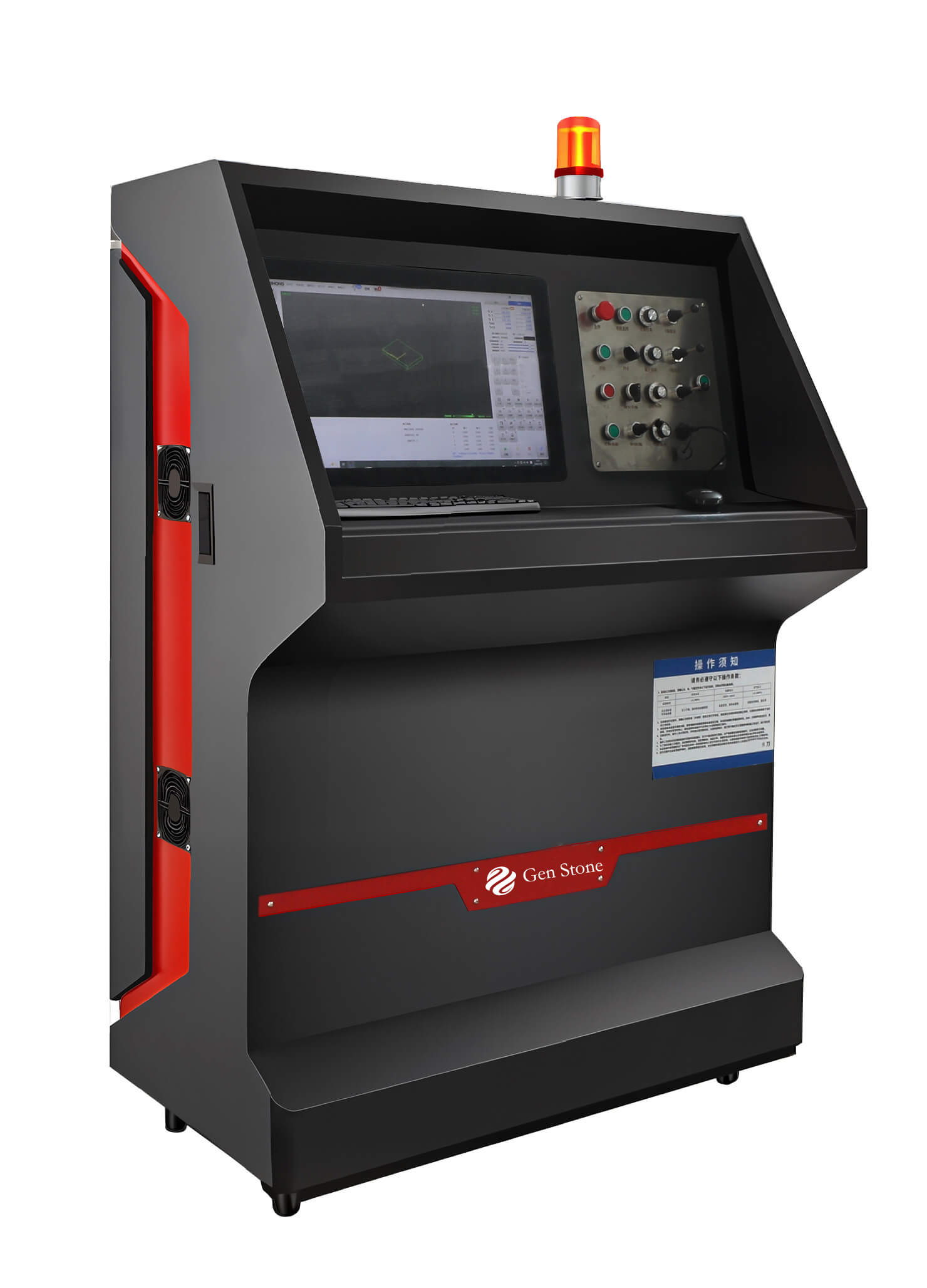

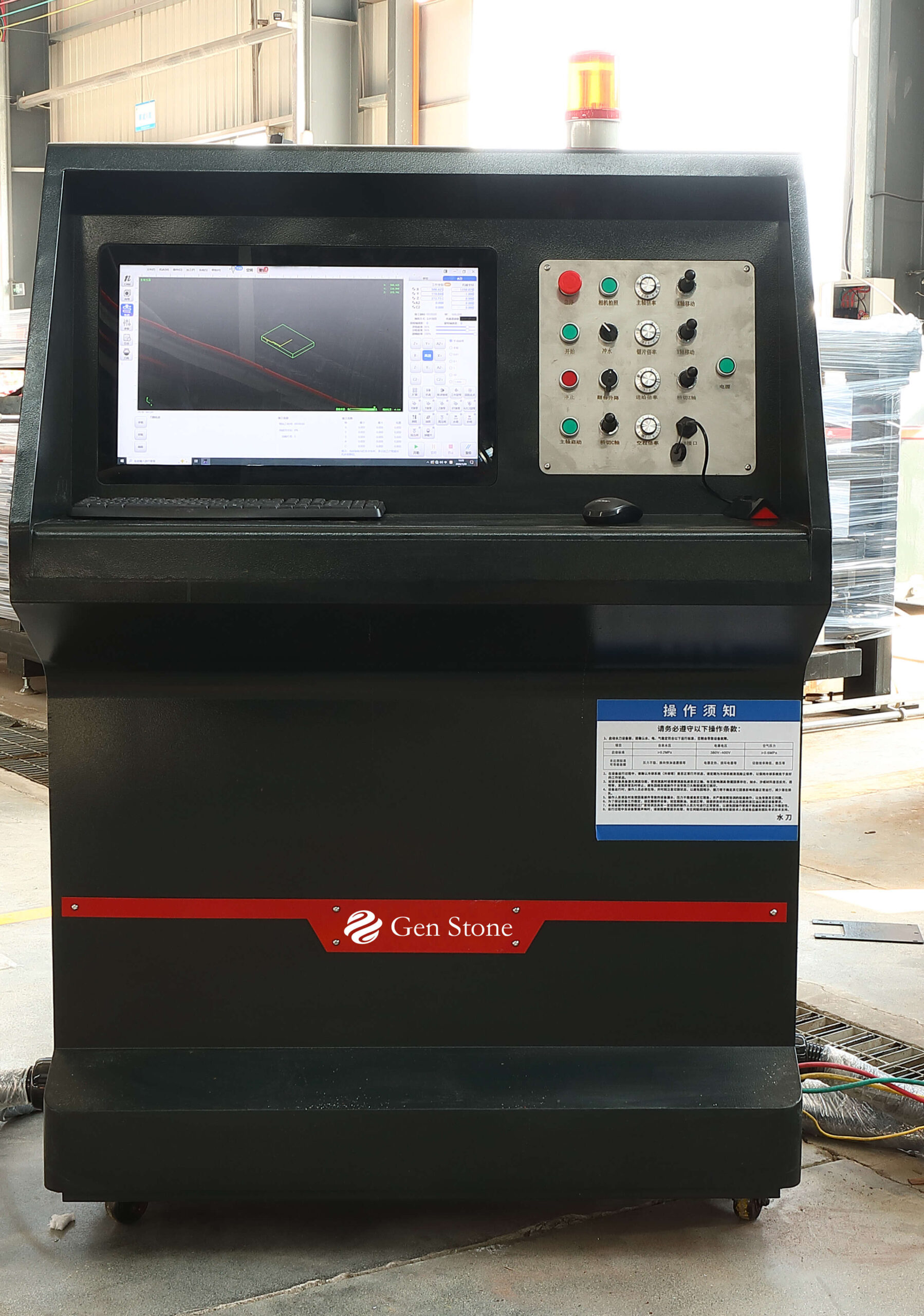

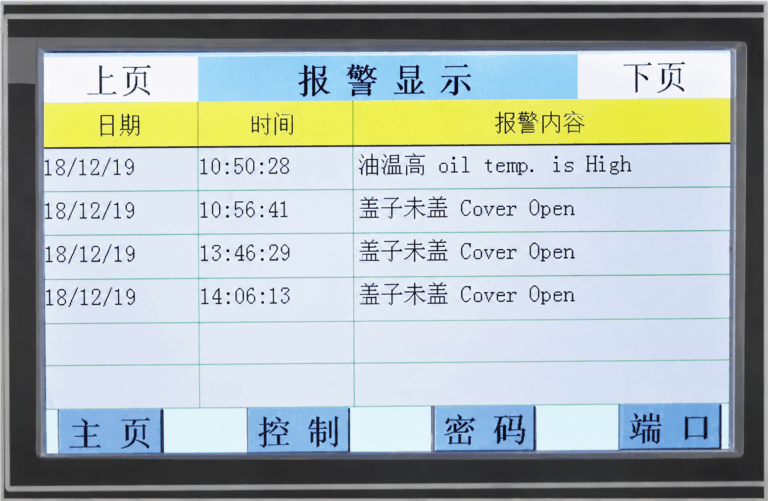

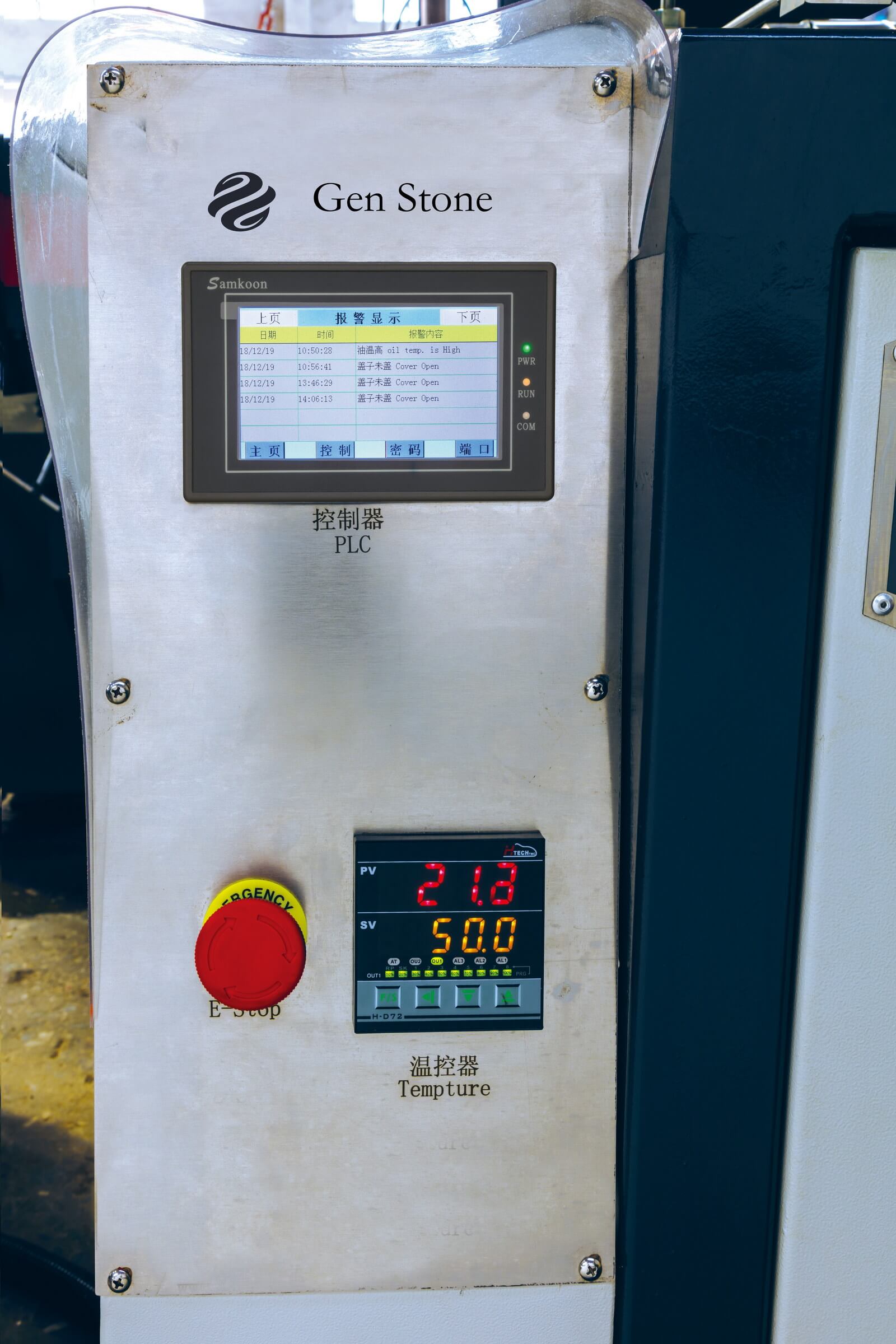

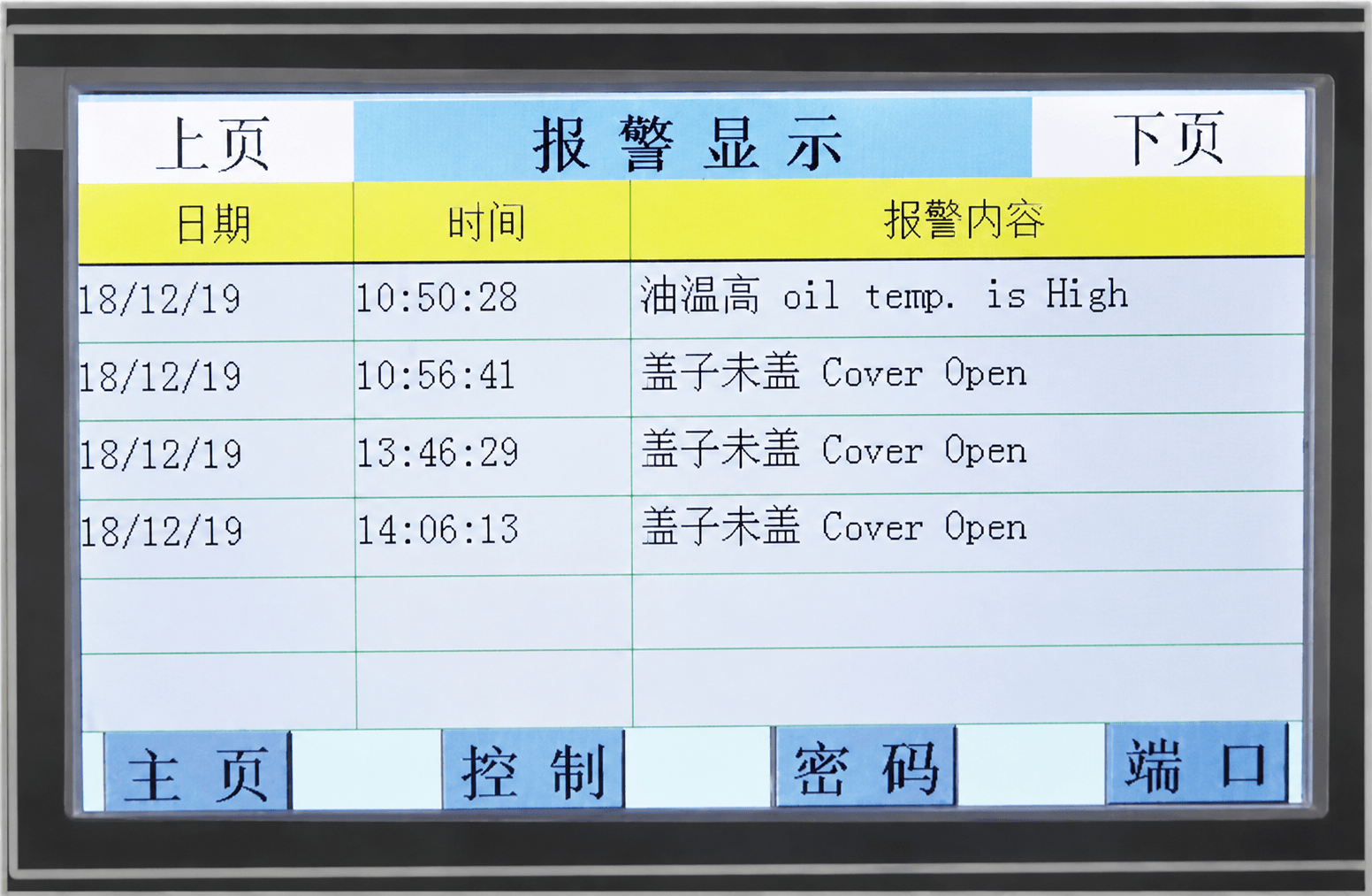

| CNC Control System | Italy imported system |
| Waterjet Head Protection Grade | IP68 Waterproof & Dustproof |
| Infrared Guide | Linear infrared emitter |
| Vacuum Suction Cup | Standard equipped |
| Saw Blade Diameter Measuring | Standard equipped |
| Digital Color Camera System | Supported |
| Overall Dimensions (L×W×H) | 6000 × 3600 × 3600 mm |
| Total Machine Weight | 6.5 Tons |
