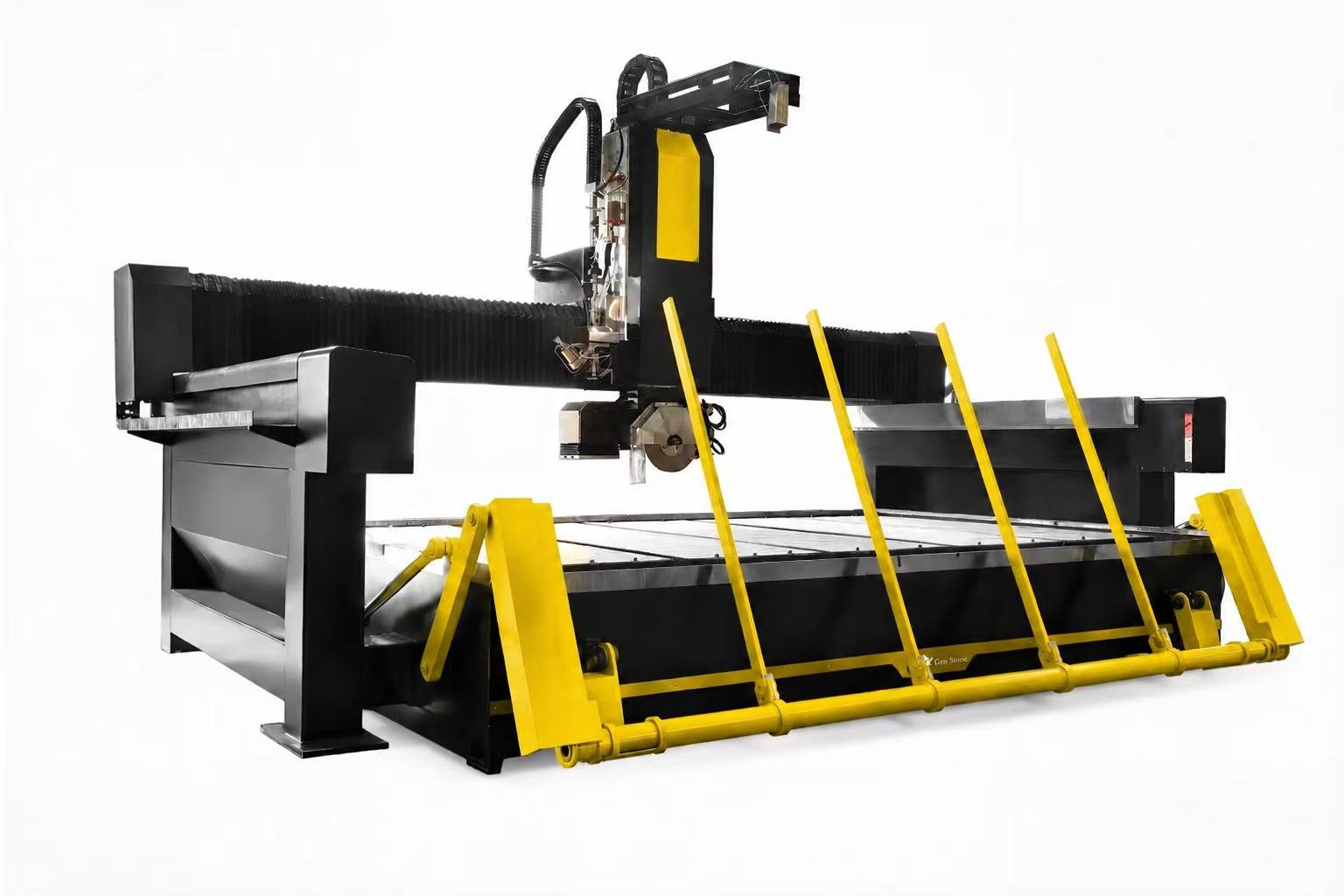

GS Saw & Waterjet Combined Bridge(GSSW‑400/500)
Saw & Waterjet Combined Bridge machinery (GSSW‑400/500) — An All‑in‑One Stone‑Processing Solution.

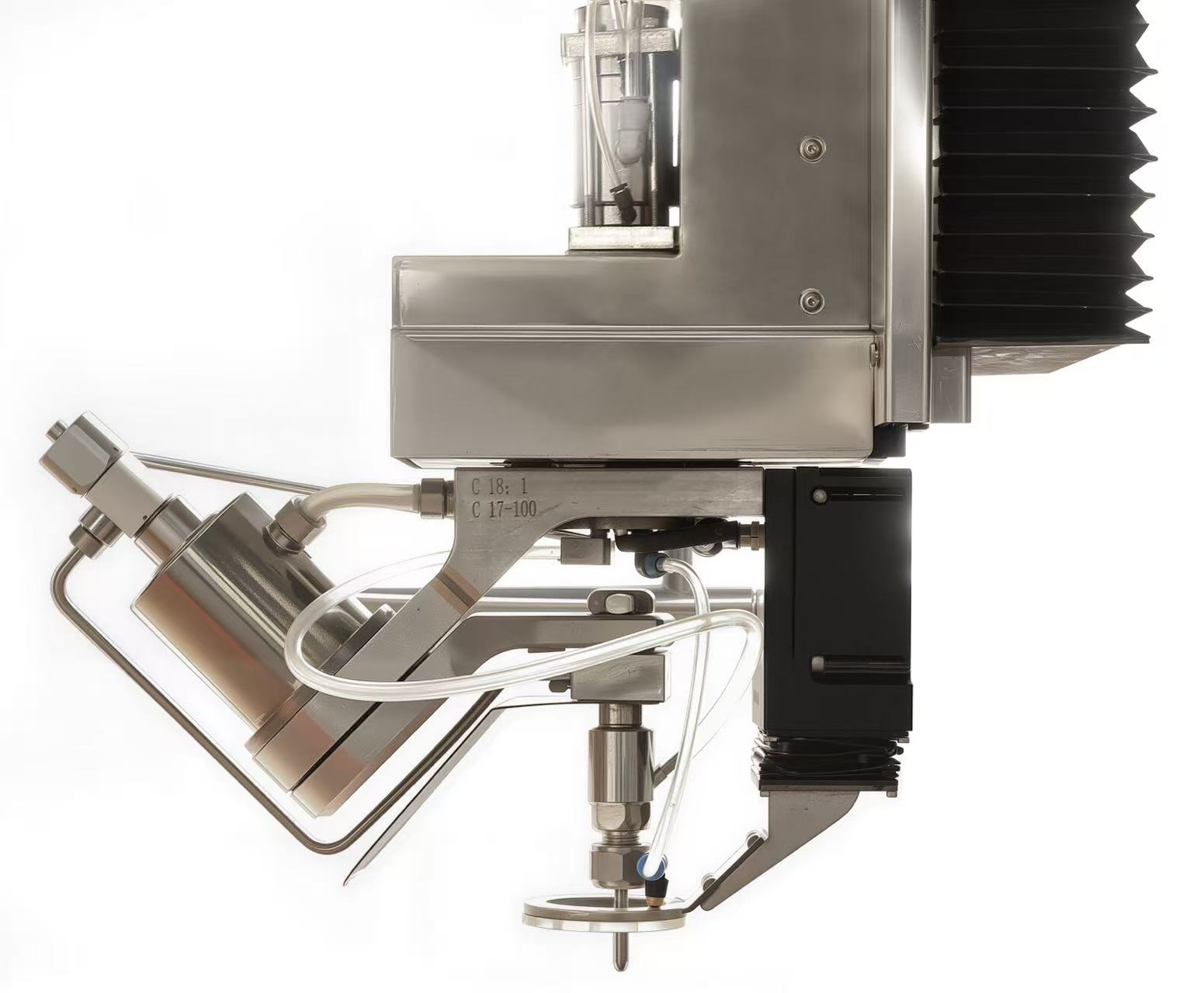

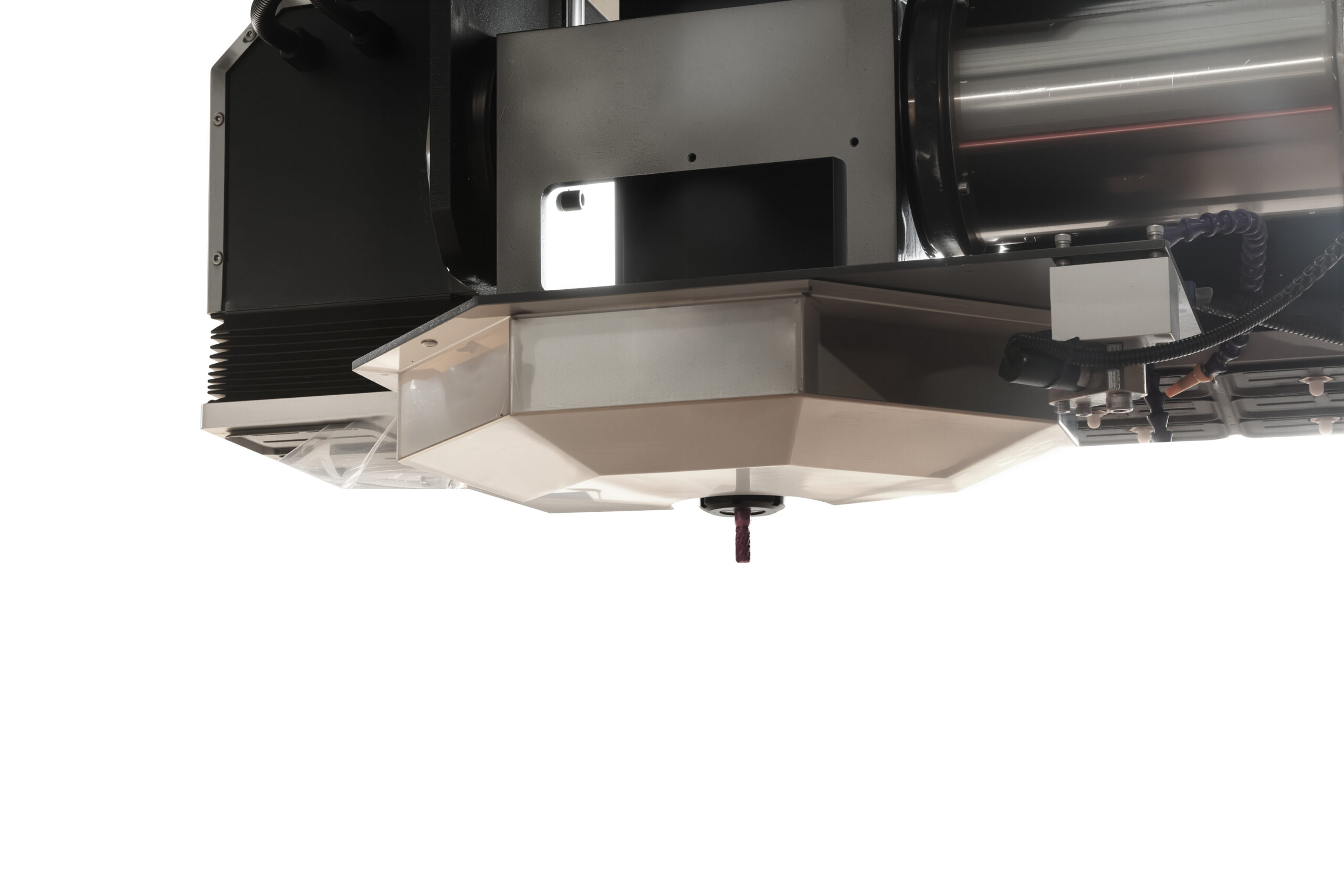

Equipped with a high‑performance bridge saw, IP68‑rated waterproof A‑C 5‑axis waterjet cutting head and 4.5 kW milling spindle, it supports cutting, drilling, milling, engraving, and polishing within a single machine. It is ideal for deep‑processing stone and porcelain slabs, delivering high efficiency and precision

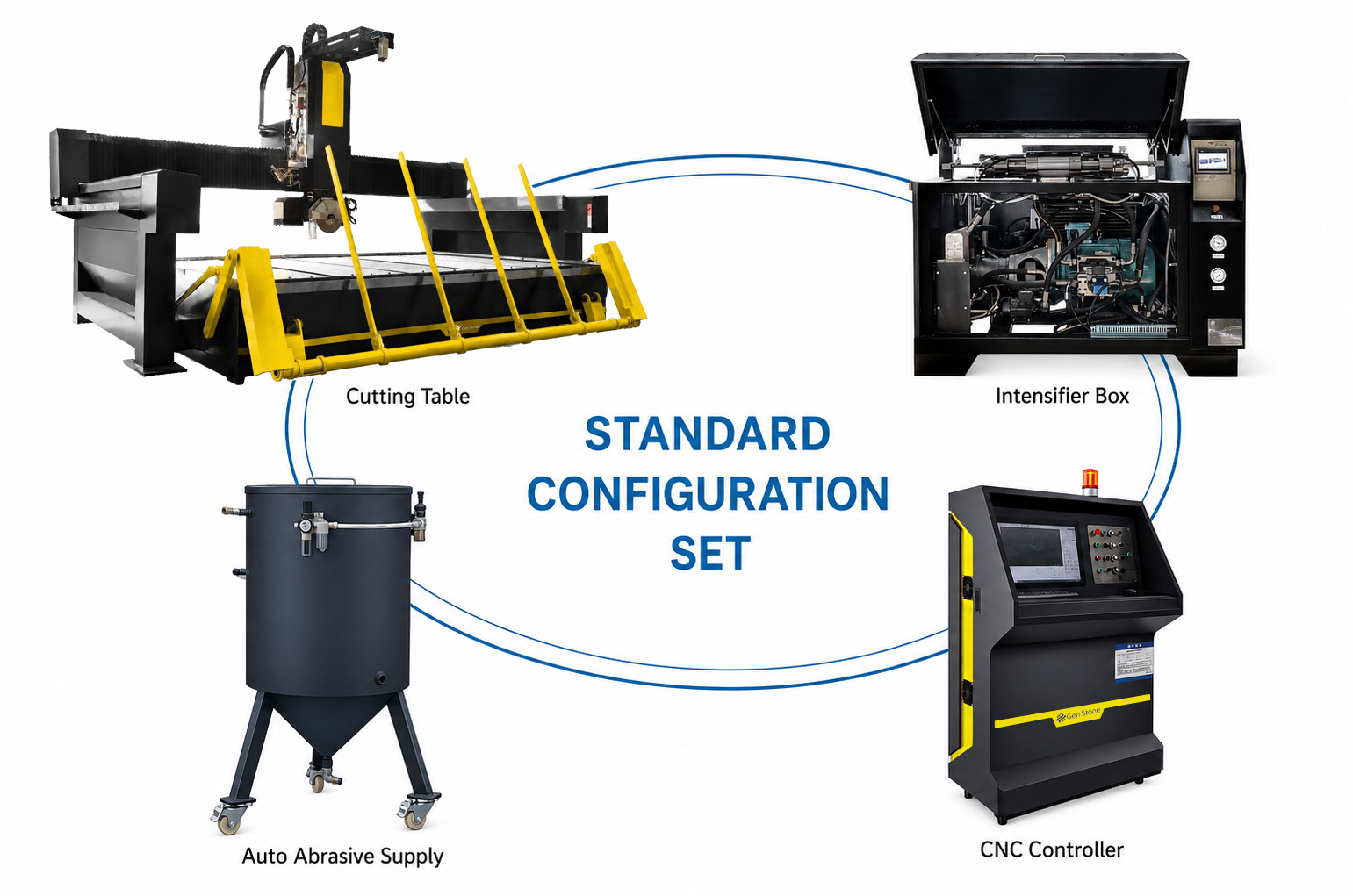

Quick Information
Product Description
Key Features & Advantages
Independent R&D
Self‑developed design, non‑spliced integrated machine
Full‑chain Production
Self‑produce welding, fittings and raw materials
High‑end Configuration
Higher‑power spindle & saw‑blade than peers
Wide Processing Range
Process all stone & slabs, support custom options
Premium Components
Adopt Siemens, Schneider, ABB components
Powerful Performance
High‑power output with strong cutting torque
Technical Specifications
| Model | GSSW400/500 |
|---|---|
| Cutting Table Size (L × W) | 4100mm * 2450mm |
| X/Y-axis Travel | 3000mm * 2000mm |
| Z-axis Travel | 350mm |
| Bridge Saw A-axis Rotation | 90° |
| Bridge Saw C-axis Rotation | ±185° |
| Waterjet A-axis Rotation | ±65° |
| Waterjet C-axis Rotation | Unlimited |

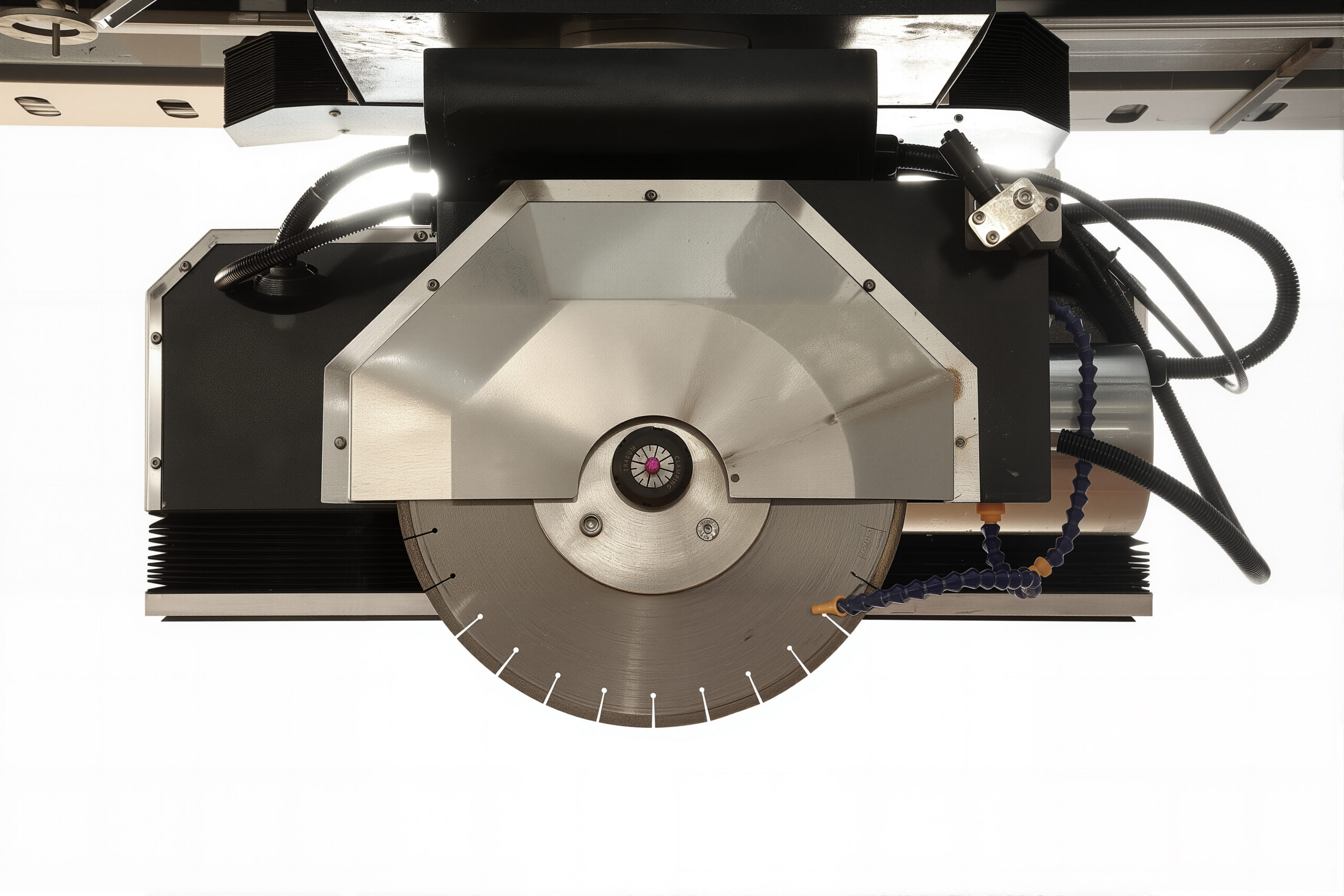

| Available Saw Blade Diameter | 405 – 450 mm |
| Maximum Working Thickness | 80 mm |
| Motorized Spindle | 22kw |
| Bridge Saw Spindle Speed | 3000 rpm |
| Milling Spindle Power | 4.5 KW |
| Milling Spindle Speed | 24000 rpm |
| Spindle Cooling Method | Water Cooling / Oil Cooling |
| Hydraulic Flip Table Range | 0 – 85° |
| Z-axis Balance System | Cylinder Balancing System |
| Lubrication Method | Y-Beam Oil Bubble + lubricating Oil Pump |

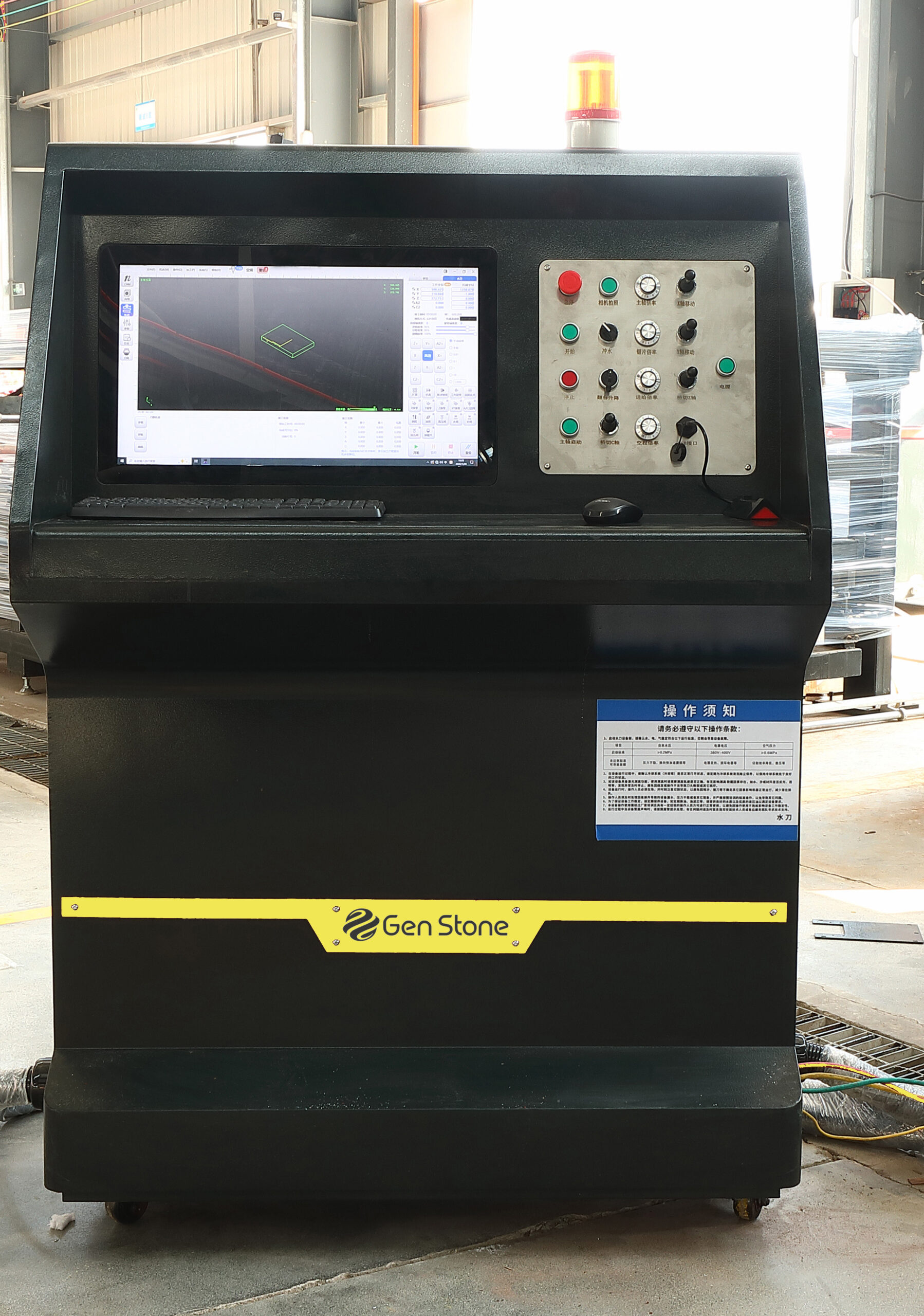

| CNC Control System | Italy Imported System |
| Waterjet Head Protection Grade | IP68 Waterproof & Dustproof |
| Infrared Guide | Linear Infrared Emitter |
| Vacuum Suction Cup | Standard Equipped |
| Saw Blade Diameter Measuring | Standard Equipped |
| Digital Color Camera System | Supported |
| Overall Dimensions (L×W×H) | 6000 * 3600 * 3600 mm |
| Total Machine Weight | 6.5 Tons |

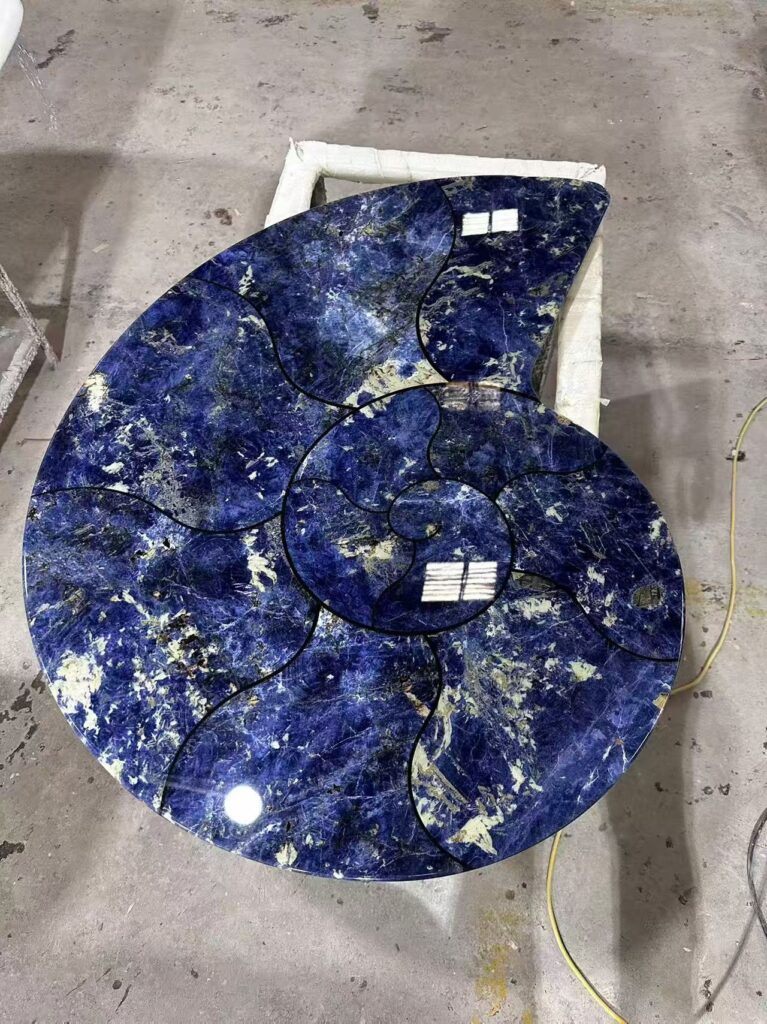

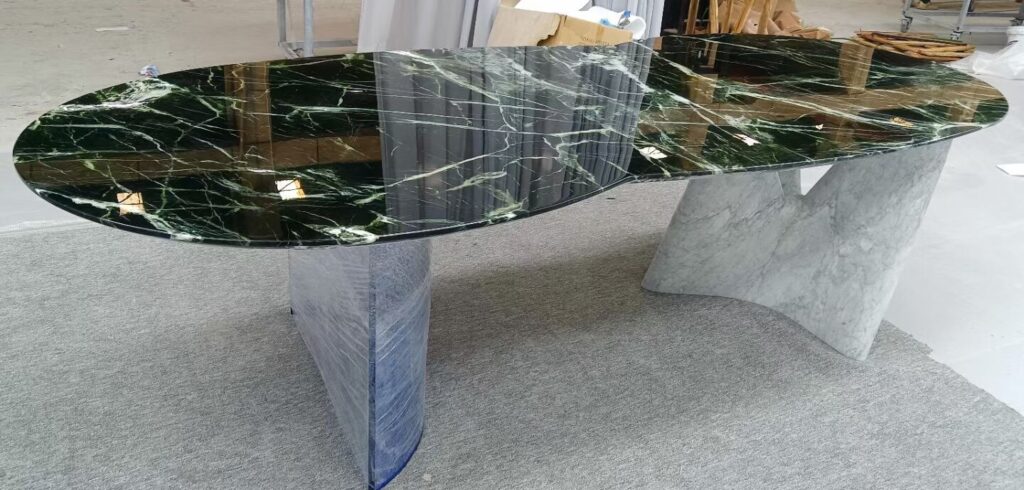

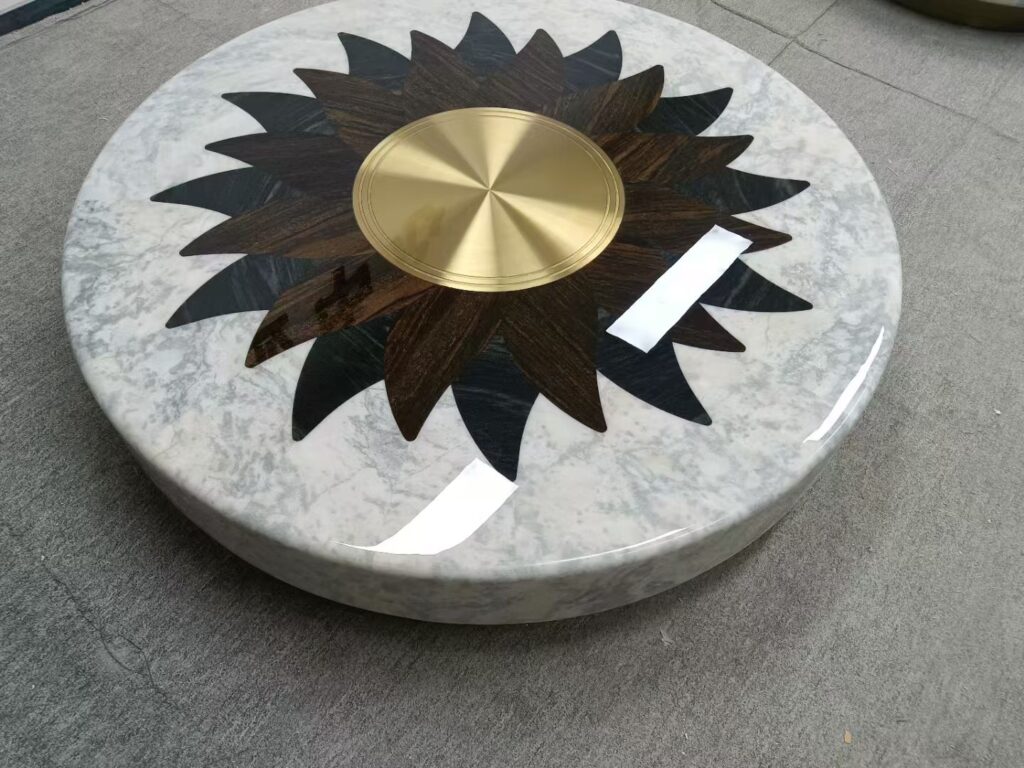

Applications

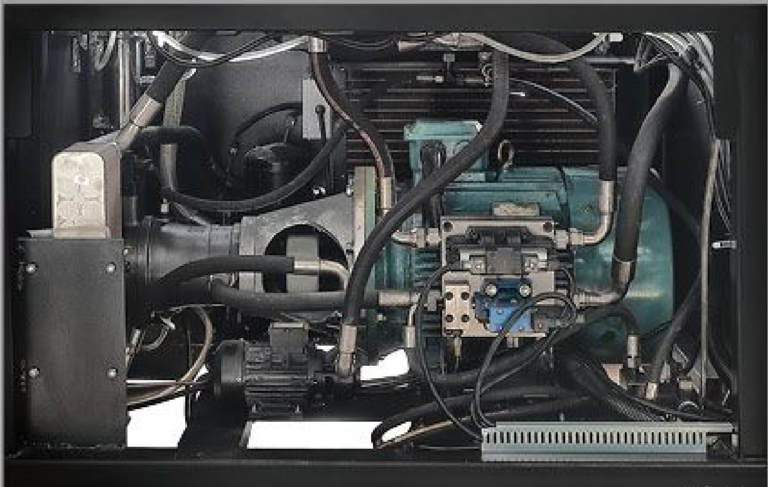

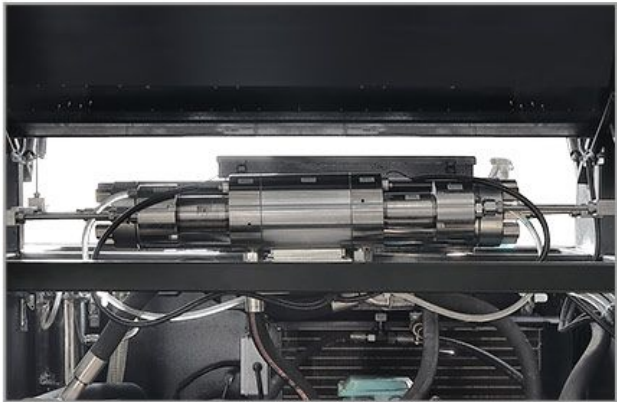

Maintenance‑free Accumulator
Ultra‑long‑life, maintenance‑free energy‑storage accumulator
Multi‑process Integration

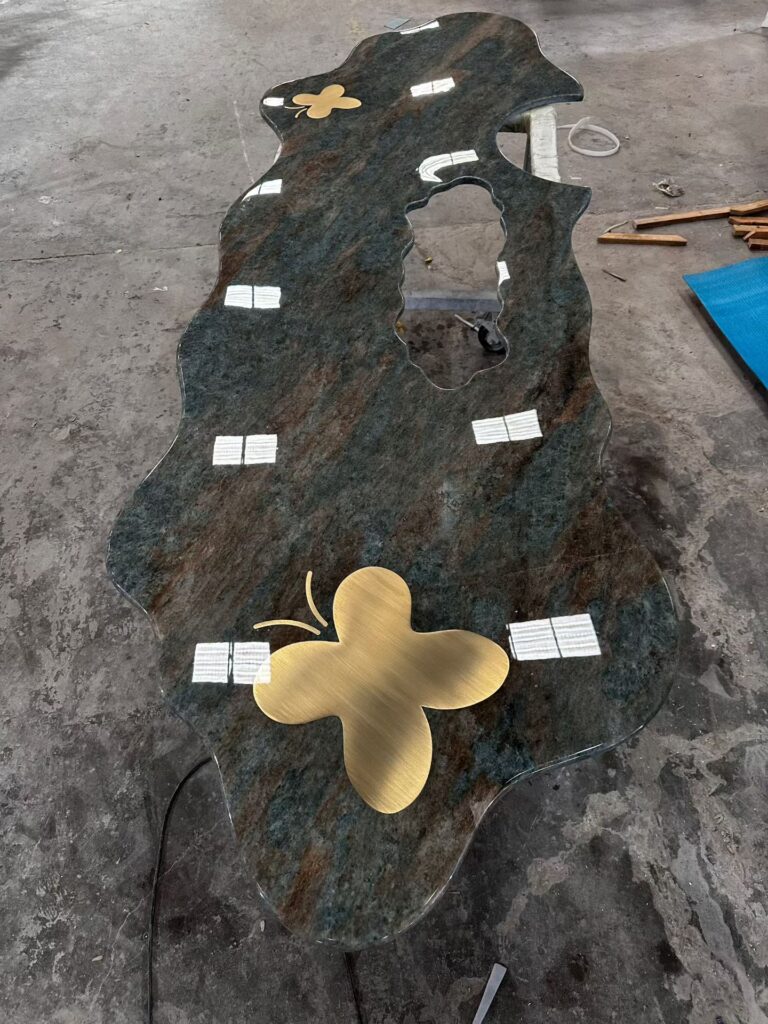

Integrates cutting, drilling, milling, engraving and grinding to deliver a one‑stop solution for stone‑and‑slab full‑process work: cutting, shaping, engraving and groove‑milling.
Full Grinding & Polishing

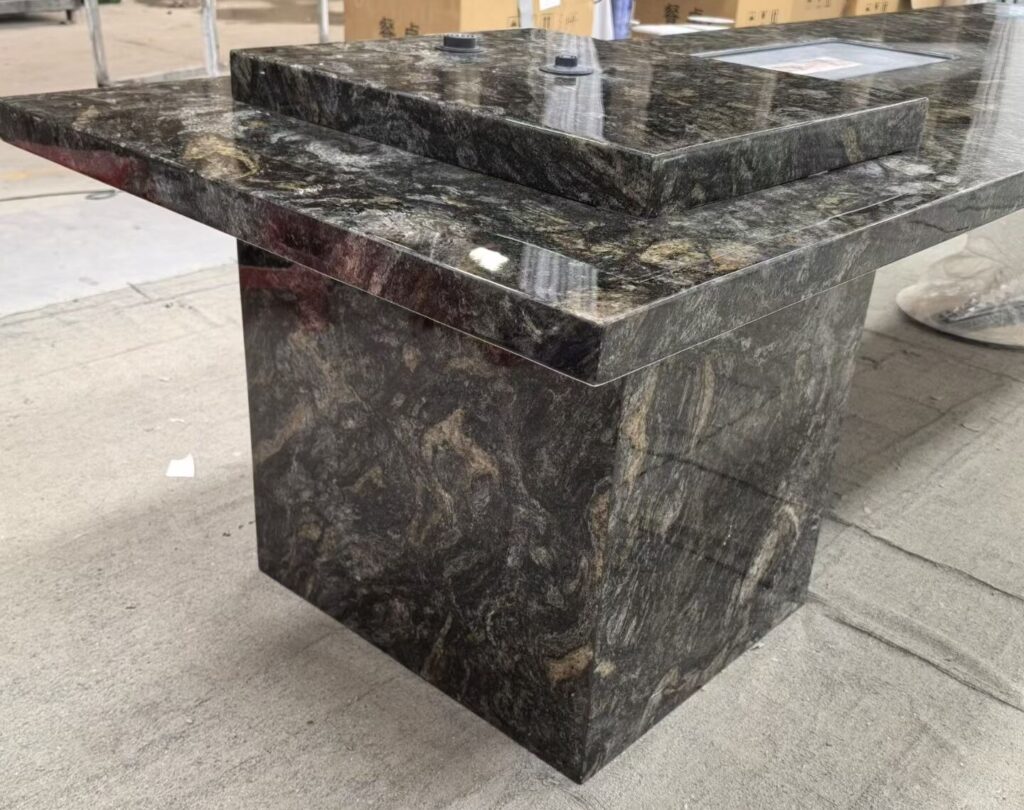

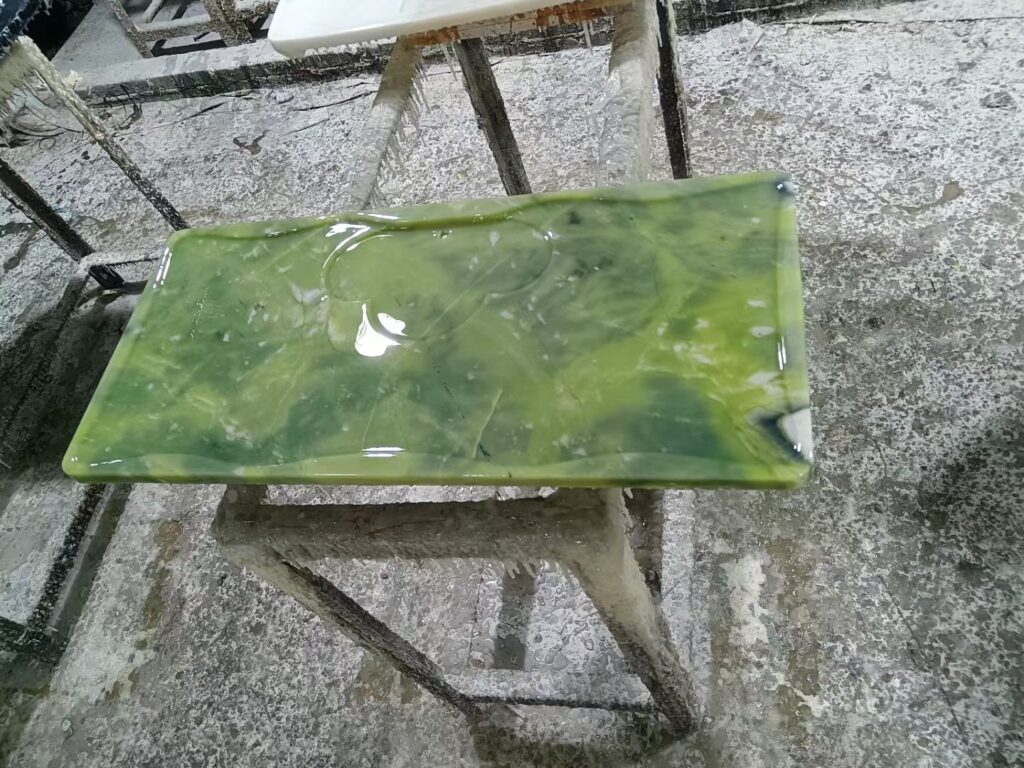

Optional grinding head and polishing function directly completes grinding and polishing for stone and rock slabs, covering full‑process requirements from rough machining to fine finishing.

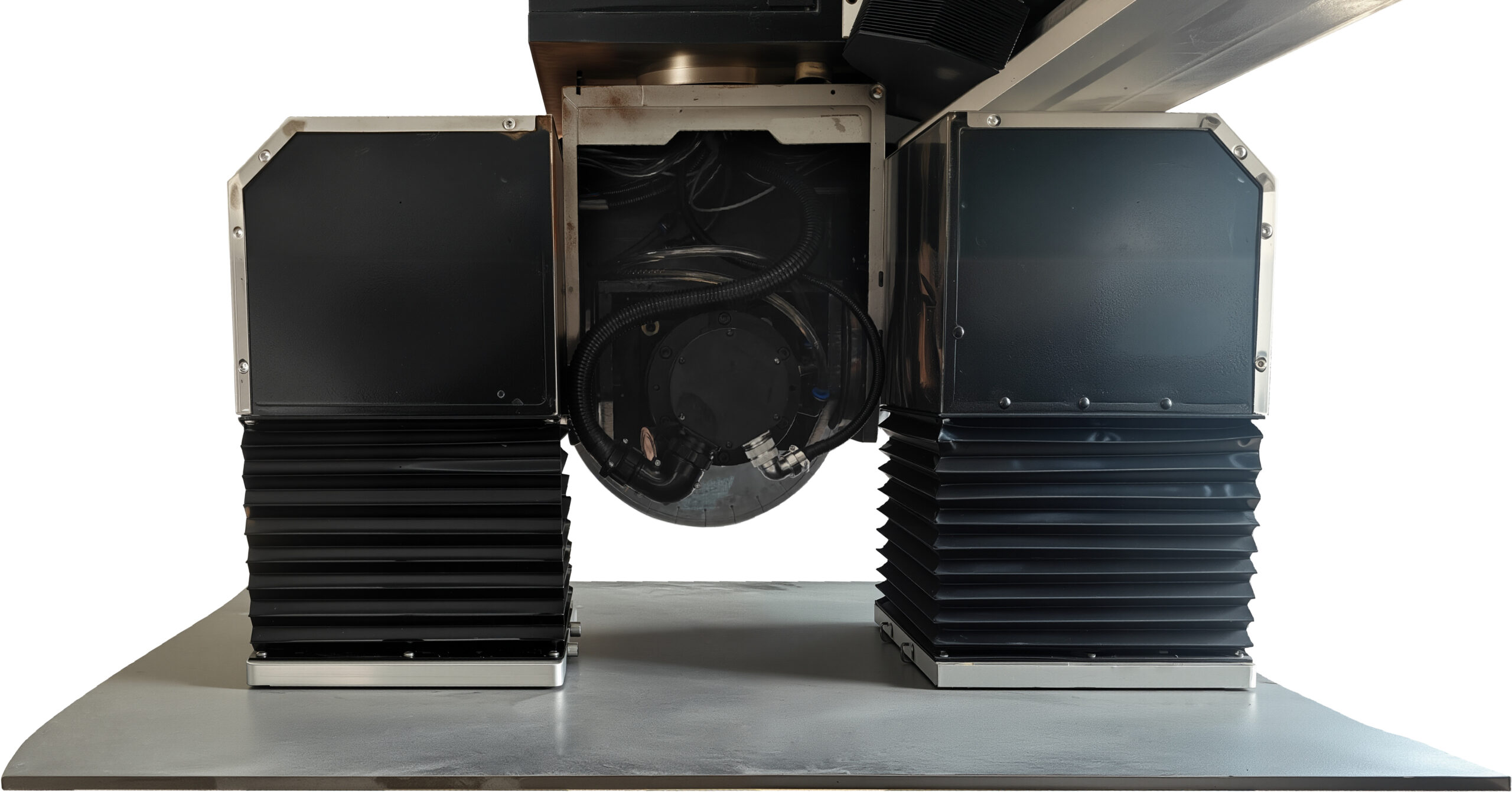

Automatic Suction Transfer
Fitted with a suction‑cup plate‑transfer function, it eliminates manual slab handling, greatly boosting efficiency and lowering labor costs.
Dual‑circuit Temp Control
Dual‑oil‑circuit circulating‑oil air‑conditioned cooling for precise temperature control.
